STEDI QUAD PRO LED DRIVING LIGHTS
85000299

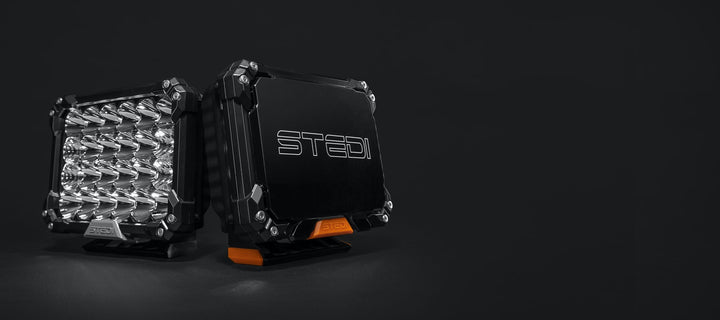

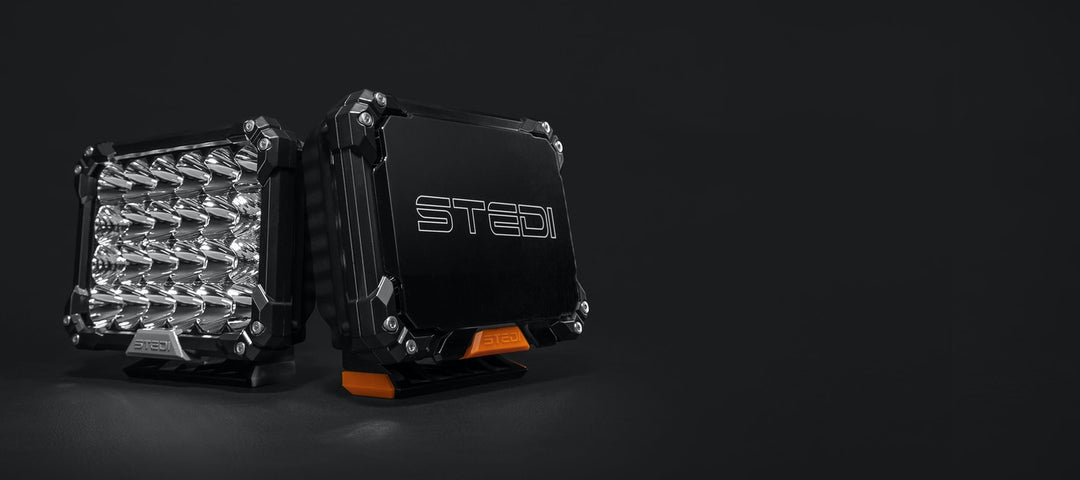

QUAD Pro LED Driving Lights
The compact housing design offers endless possibilities in terms of mounting locations. We think these are going to be hugely popular as roof-mounted arrays and on bull bars with minimal clearance like the AFN bars.
KEY FEATURES
- Includes our legendary Easy-Fit plug and play high beam wiring harness
- IP68 Ingress protection means our QUADS are 100% immersible in water and dust-tight.
- 5700K Colour temperature provides just the right amount of warmth to cut-through air-born particles.
- Environmentally sealed Deutsch DT-2 connectors
- RFI and EMI suppressed circuit design, means no interference with radio or communications equipment.
- High-Pressure Die-Cast Bracket

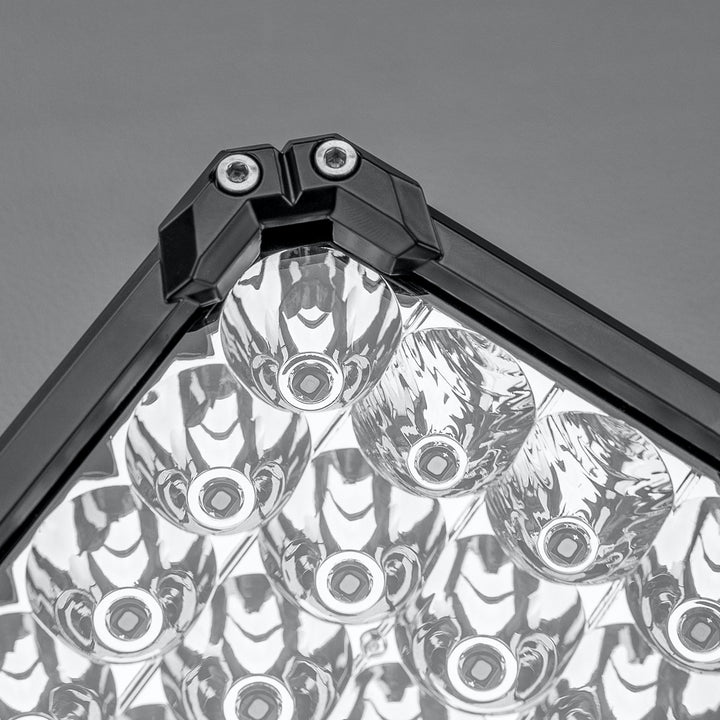

- Spread and Spot beam reflectors built-in.
| LED | 24 x Oslon High-Flux LED |
| RAW LUMENS | 17,040 (Pair) |
| TESTED LUMENS | 11,360 (Pair) |
| AMP DRAW | 7.4A @ 13.2v (each) |
| POWER DRAW | 97W (each) |
|
CANDELA |
693,889cd |
| BEAM PATTERN | 4 x Spread 20 x Pencil Beam |
| INGRESS PROTECTION | IP68 | Submersible up to 3m |
| COLOUR TEMP (CCT) | 5700K |
| VOLTAGE COMPATIBILITY | 12v & 24v |
| LUMEN MAINTENANCE | 50,000 LM-80 |
| WEIGHT | 1.4Kg (Including cover) (each) |
| PHOTOMETRIC DATA | |
| 10 m | 6,938 Lx |
| 50 m | 277 Lx |
| 200 m | 17 Lx |
| 300 m | 7.7 Lx |
| 400 m | 4 Lx |
| 500 m | 2.7 Lx |
| 833 m |
1 Lx |
WHAT'S INCLUDED
- 2 x QUAD Pro LED Spot Lights
- 2 x STENCIL Black Out Covers
- 1 x Set Orange Colour Caps (fitted)
- 1 x Set Grey Colour Caps
- Easy Fit High Beam Wiring Harness
- H4 & HB3 adapters to High Beam
- Installation Manual
- Stainless fitting hardware
