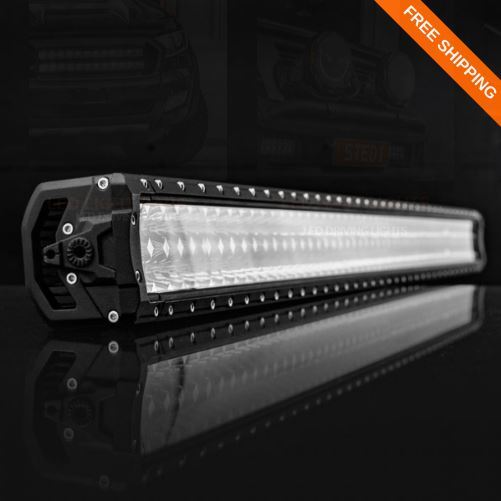

STEDI LEDST4K-52-100L 52 Inch ST4K 100 Led Double Row Light Bar
85000296

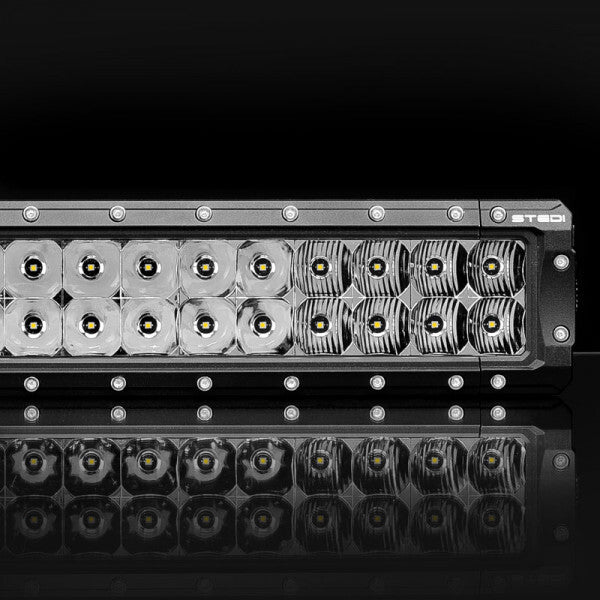

Our all-new ST4K™ 52 Inch is the culmination of years of our proven experience in delivering market-leading LED auxiliary lighting. Fitted with 100 of OSRAM’s® finest OSLON® LED for a combination of 16 Flood + 58 Spot + 16 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 1,050m
The ST4K™ range features our all-new 3-part beam adopted from our flag-ship Type-X driving light which has proven to outperform spot lights costing 3 x our price and a massive +165% increase in lux performance in comparison to the outgoing ST4000!
A360.0 Cast face plate, extruded Aluminum heat sink | finished in 100% Polyester UV and abrasion resistant powder coat, ensures that our bars will never discolour.
Pressure Equalization vent with Gore® membrane | Protects against water ingress, dust & contaminants.
IP68 | Dust & Particle tight + Water-proof up to 3 meters – Drown it, we insist!
Environmentally sealed Deutsch ® DT connector.
SPECIFICATIONS
- Led Manufacturer - Osram (Oslon) ®
- Led Count - 100
- Voltage - 12V & 24V
- Lens Material - Optical Grade, Hard Coated Lexan
- Lumens - 24,000 Lumens
- Peak Intensity - (Candela)1,104,000Cd

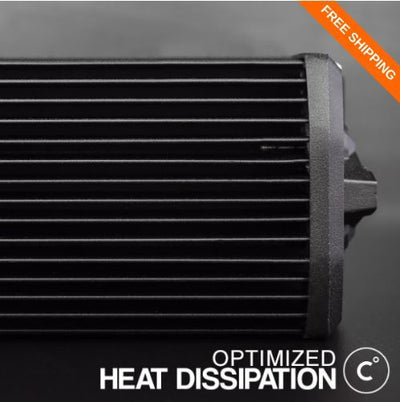

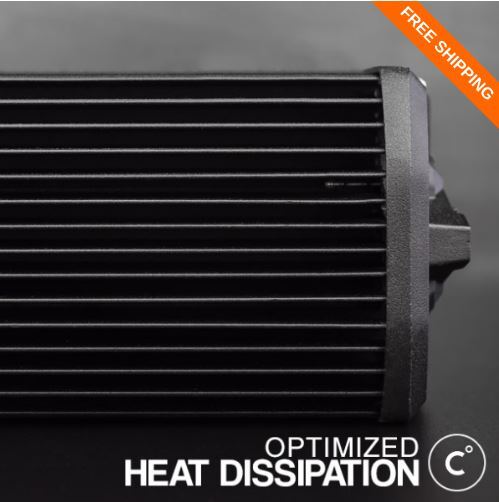

- Housing Material - A360.0 Cast Face Plate, Extruded Aluminum Heat Sink
- Amperes - 23.4.2A @ 13.6V
- Lifespan - 50,000
- Flood Beam - 50°
- Spot Beam - 5.8°
- Ingress Protection - Ip68
- Operating Temp - -40°C To 60°C
- Weight - 6.620Kg
WHAT'S INCLUDED
- 1 x ST4K-100 STEDI Oslon LED Light Bar

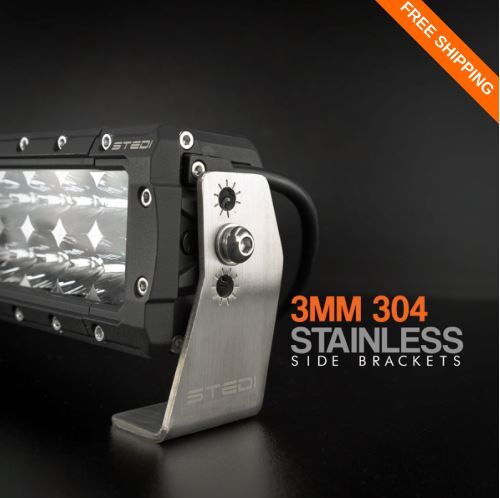

- 2 x Brushed Stainless Steel Side Brackets
- 3 x Adjustable Sliding Brackets

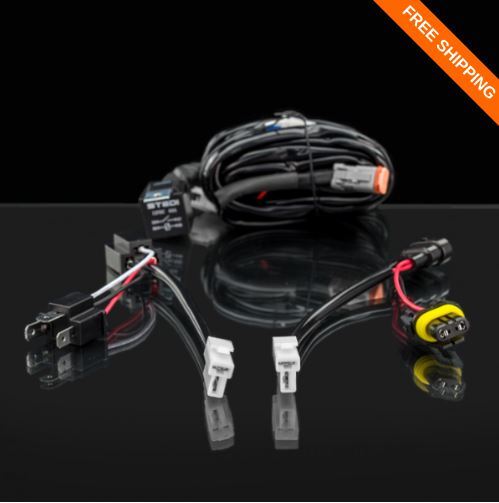

- Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included.
- Cable Ties
- Wiring Instructions
