3M™ Thinsulate™ SM600L Van Insulation — DIY Roll (60" × 30 ft)

3M™ Thinsulate™ SM600L — DIY Insulation by the Roll (60" × 30 ft)

The same acoustic and thermal insulation as our pre-cut Sprinter kits, supplied as a full uncut roll for DIY builders who want to cut their own panels, layer up, or insulate areas a kit doesn't cover.

3M™ Thinsulate™ SM600L is a lightweight, moisture-resistant non-woven absorber that delivers genuine year-round temperature control and serious road-noise reduction without adding meaningful payload. It ships compressed and lofts to its full 44 mm once applied.

Prefer no cutting? Buy the pre-cut kit

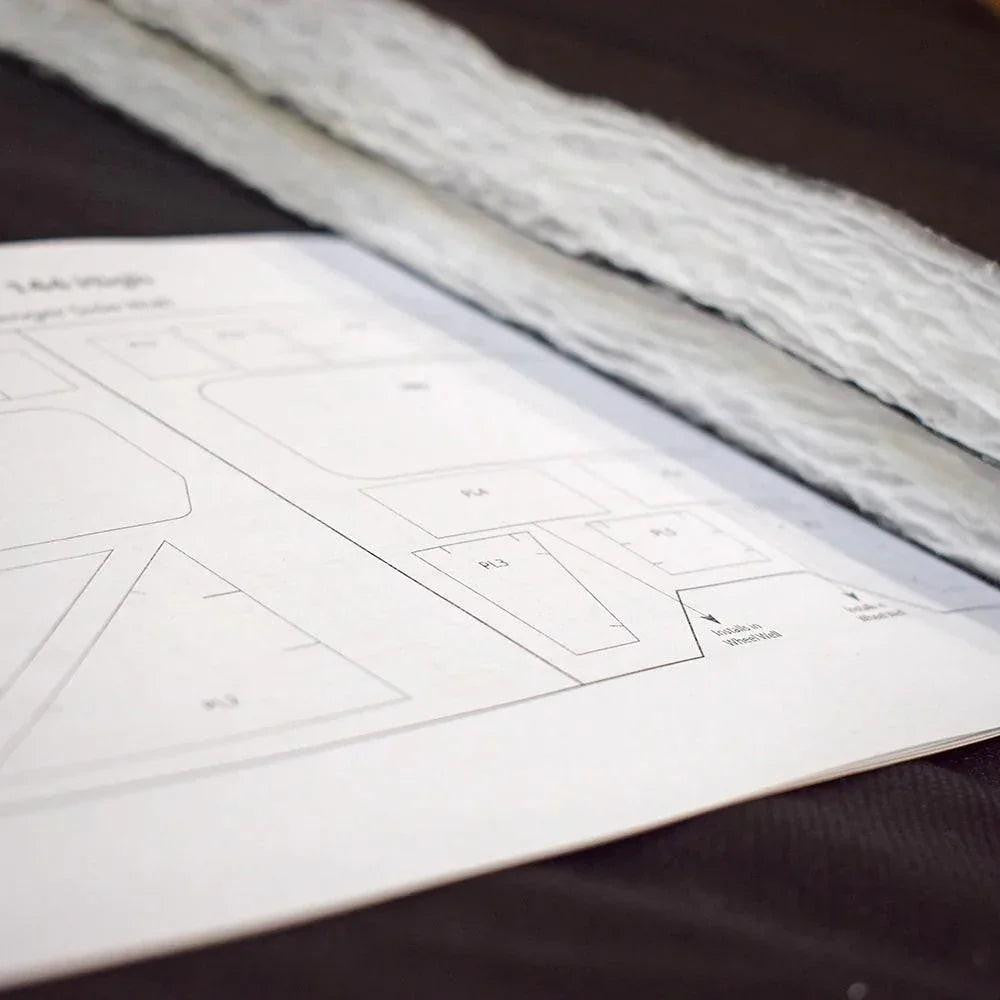

Our pre-cut, labelled Sprinter kits (MWB-LO, MWB-HI, LWB) match the panel geometry exactly — no trimming, no waste, no guesswork. For a standard Sprinter cargo fit-out the kit is the faster, better-value route. This roll is for custom work and DIY cutting.

Coverage (uncompressed)

• Roll size: 60" wide × 30 linear ft (≈150 sq ft / ~14 m²)
• 1 linear ft of roll = ~5 sq ft of coverage
• Sprinter 144" WB — allow ~50 linear ft (≈ 2 rolls)
• Sprinter 170" WB — allow ~60 linear ft (≈ 2 rolls)
• Sprinter 170" Extended — allow ~70 linear ft (≈ 2–3 rolls)

Why Thinsulate

• Quiet cabin — non-woven acoustic absorber that soaks up mid- to high-frequency noise, vibration and echo.
• True thermal performance — R-value of roughly 5.45 per inch (RSI 0.96); cool through summer, warm through winter.
• Moisture & mould resistant — hydrophobic fibres shed moisture and resist mildew. No separate vapour barrier required.
• Lightweight — ~16.1 kg/m³ density adds minimal load.
• Safe to work with — no fibreglass, no off-gassing, no skin irritation. Meets FMVSS 302 fire safety.

Installation

Cut to size and bond to the white fibre side with 3M™ 90 spray adhesive (or equivalent high-strength contact adhesive). Scrim backing faces the panel.
