FVC Solar Panel Mounting Brackets
Highlights
Choose options
Highlights
Highlights
Design
Black powder-coated finish for weather and corrosion resista
- Black powder-coated finish for weather and corrosion resistance
Features
Compatible with most roof racks for versatile installation
- Compatible with most roof racks for versatile installation
Specs
Easy to install
- Easy to install, offering a secure mount for solar panels
- Perfect for powering off-grid adventures with renewable energy
Goes well with
Flatline Van Co's Solar Panel Mounting Brackets let you flush-mount your solar panels to your FVC roof rack, making the installation clean and simple. They're designed for the Low Pro and Standard series Sprinter, Transit & ProMaster roof racks — or any other roof rack that features 8020 style extrusion crossbars.
Choose Your Option

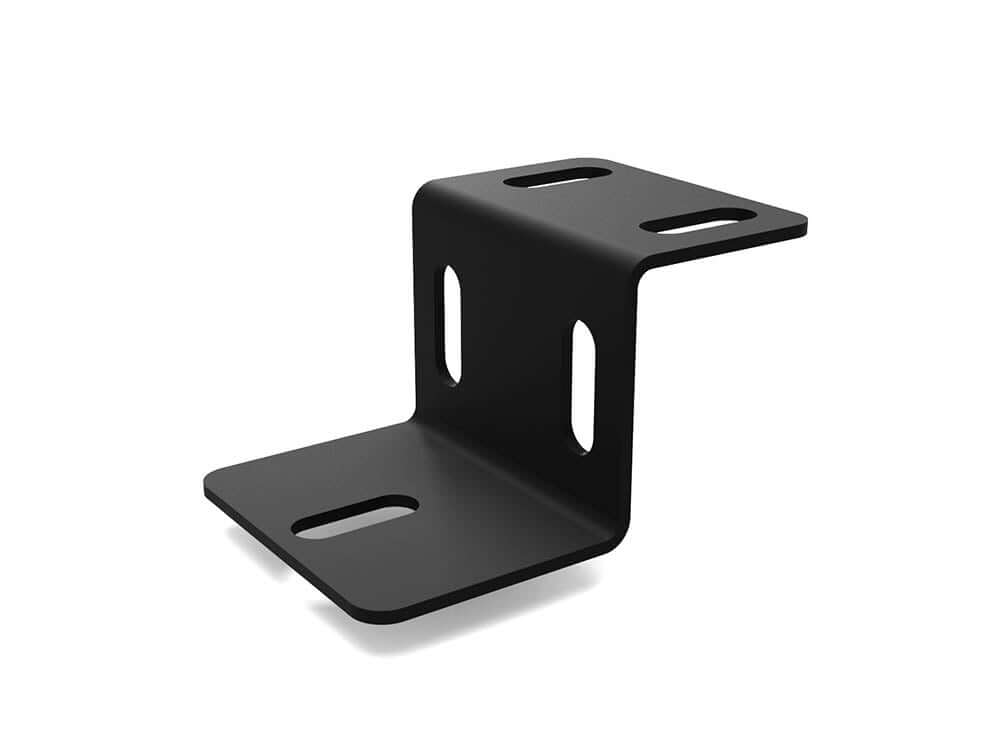

Standard Height (38mm): The Standard height option is designed for 38mm solar panels, and may be used with thicker panels (thicker panels will be limited to bottom-mount or raised-mount orientation).

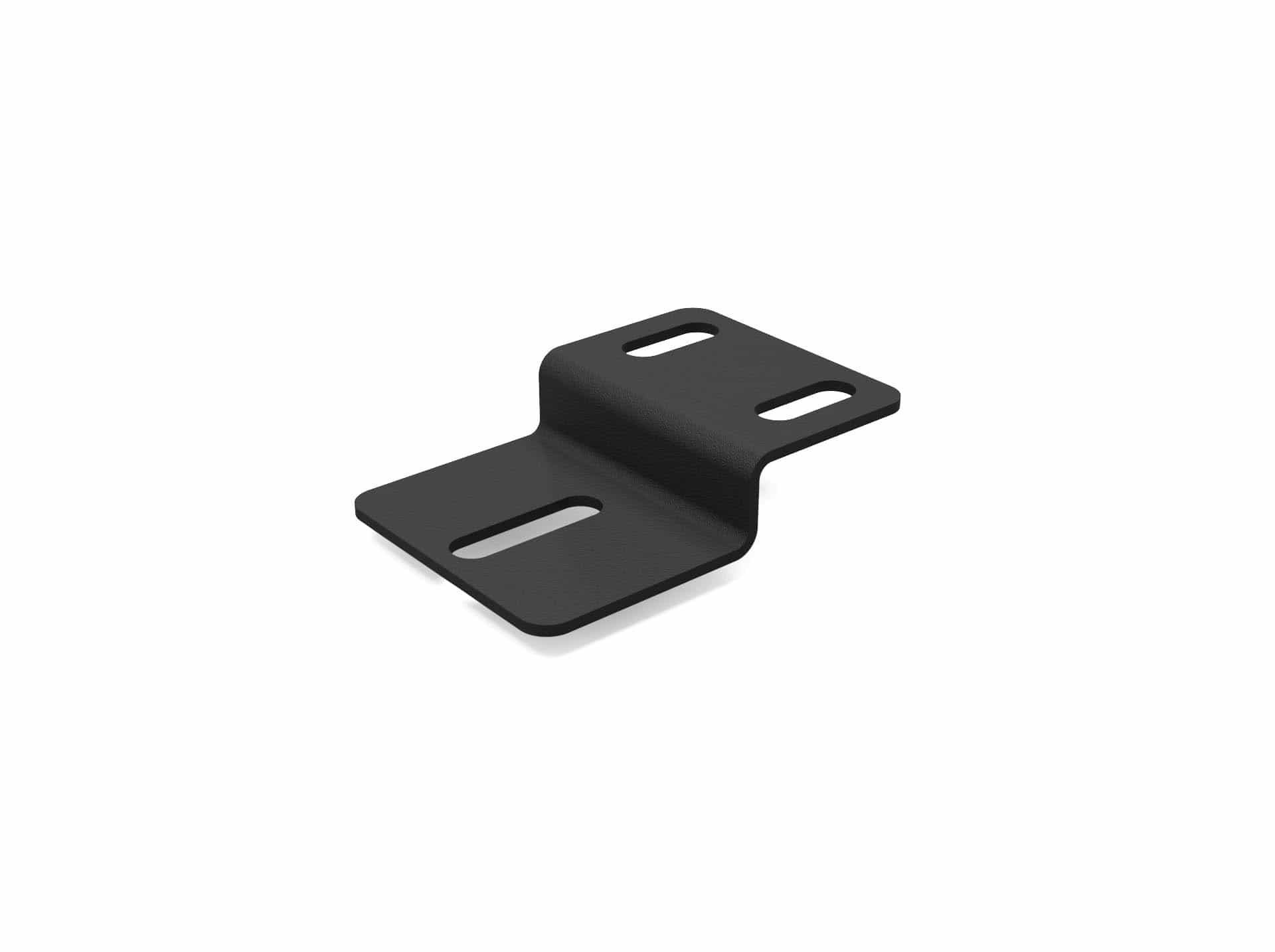

Low Profile Height (.1702mm): The Low Profile height option is designed for ZAMP Obsidian Series 17mm thin solar panels.
How Can I Mount My Solar Panels With These Brackets?

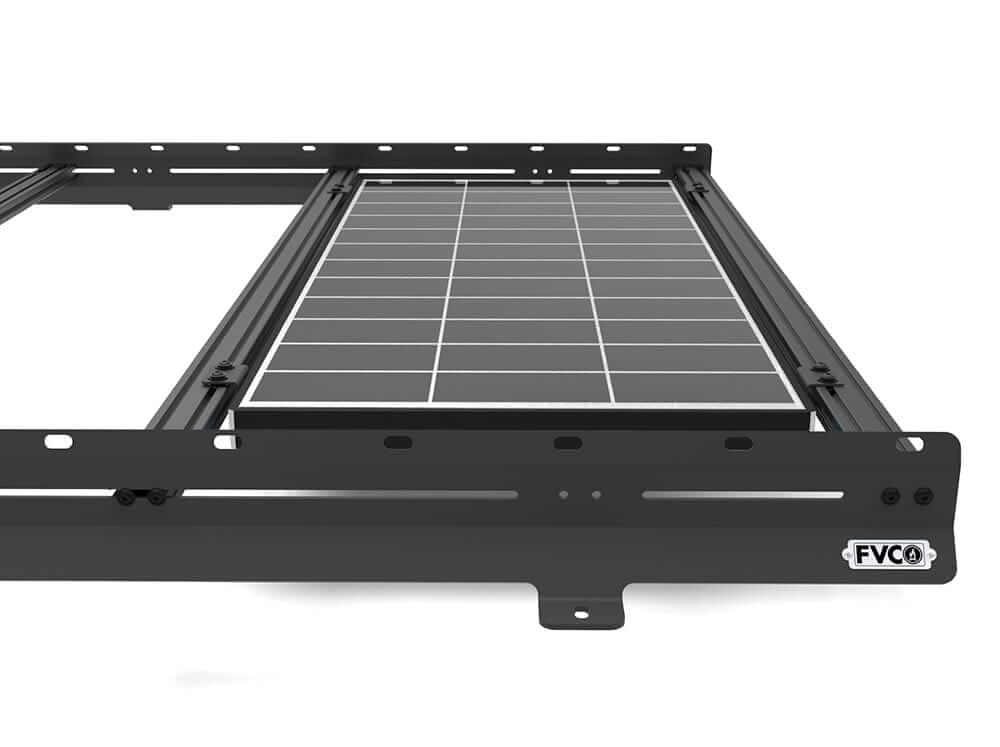

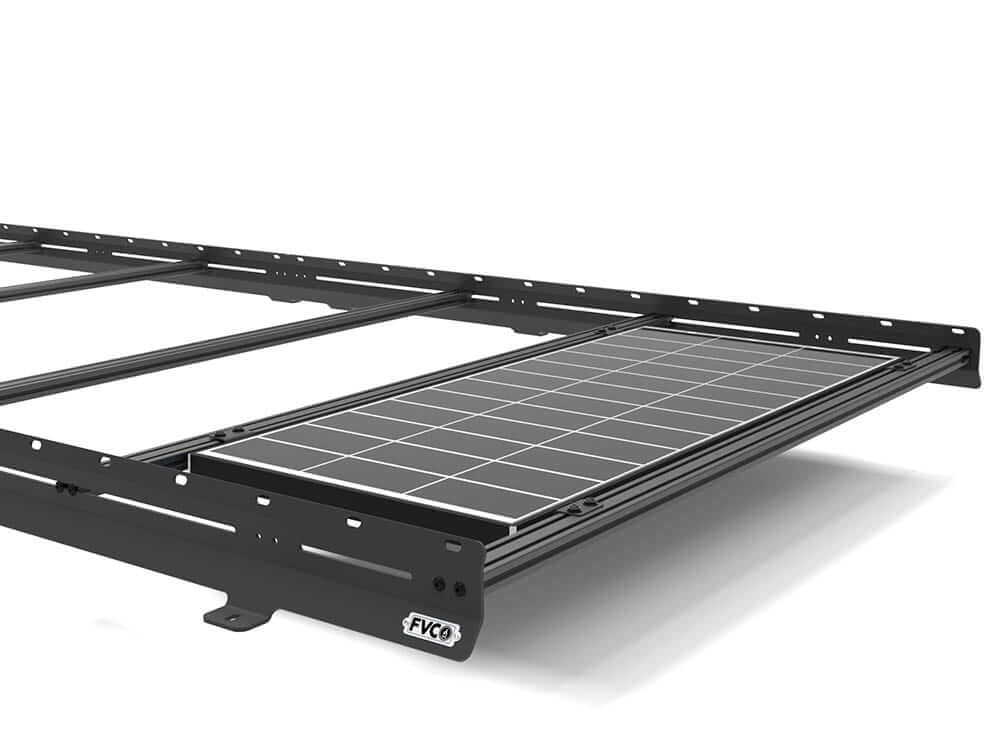

Flush-Mount: This is the most common option and works for 38mm or .1702mm panels. Install the brackets in the T-slots on the top of the crossbars to have the solar panels flush with the top of the crossbars.

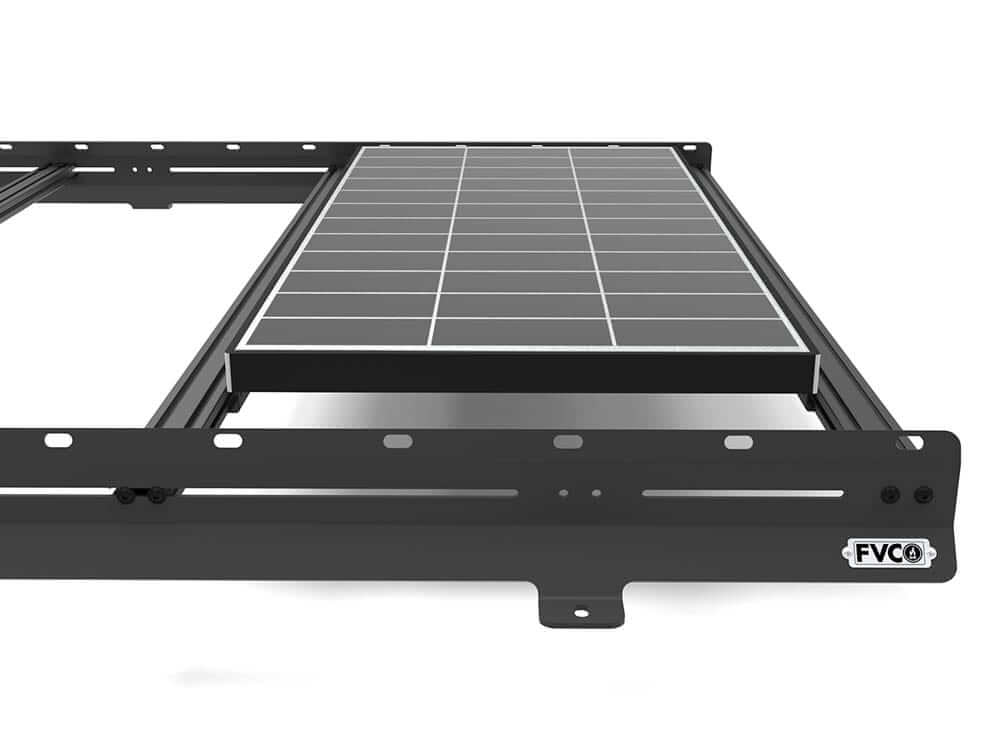

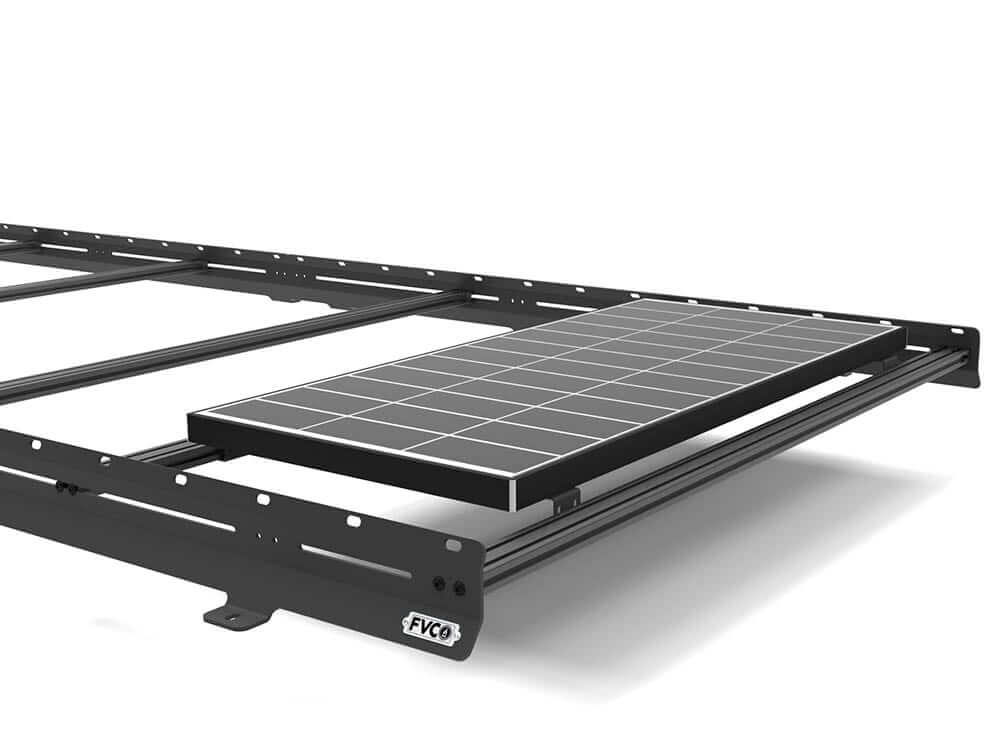

Bottom-Mount: This allows you to use the crossbar for other purposes and have solar panels installed. Install the brackets in the T-slots on the bottom of the crossbars.

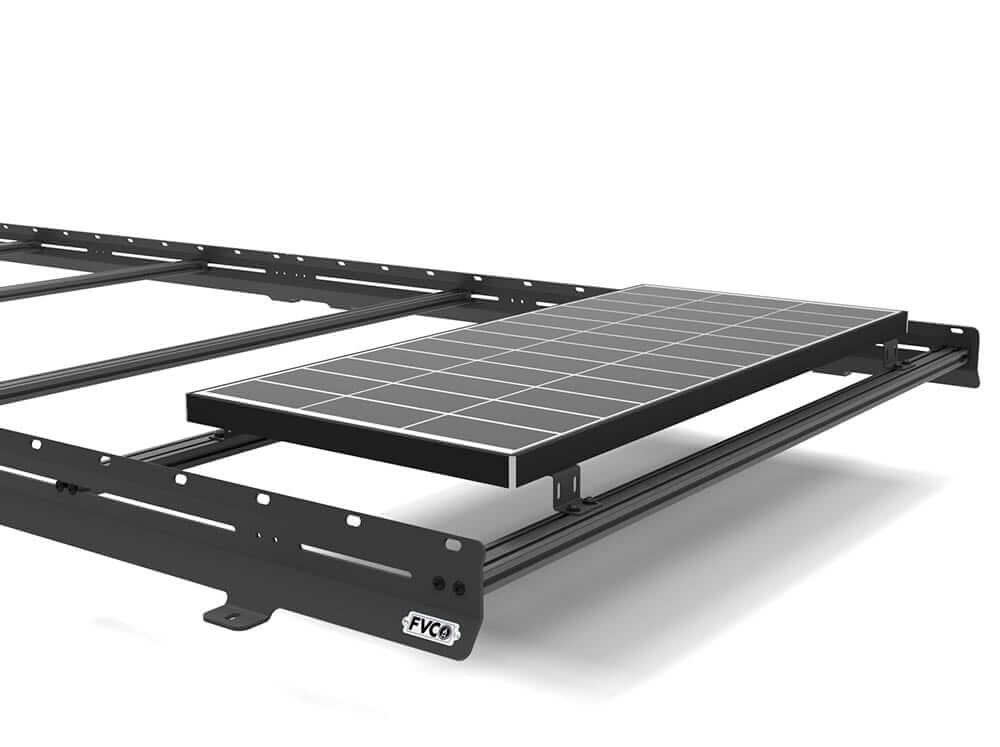

Raised-Mount: Flip the bracket over and install in the T-slots on the top of the crossbars for solar panels to be mounted slightly higher than the crossbars.
DETAILS

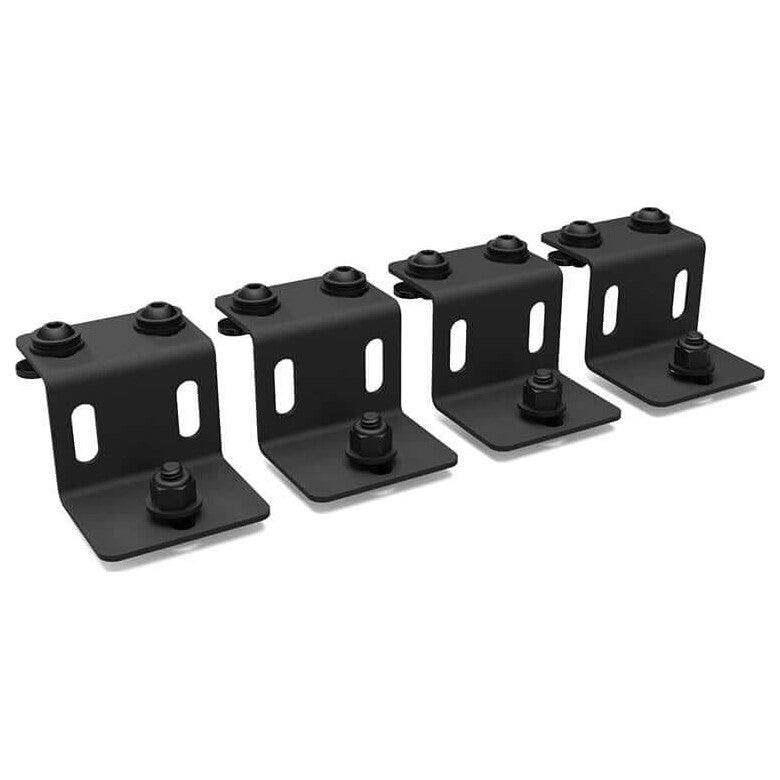

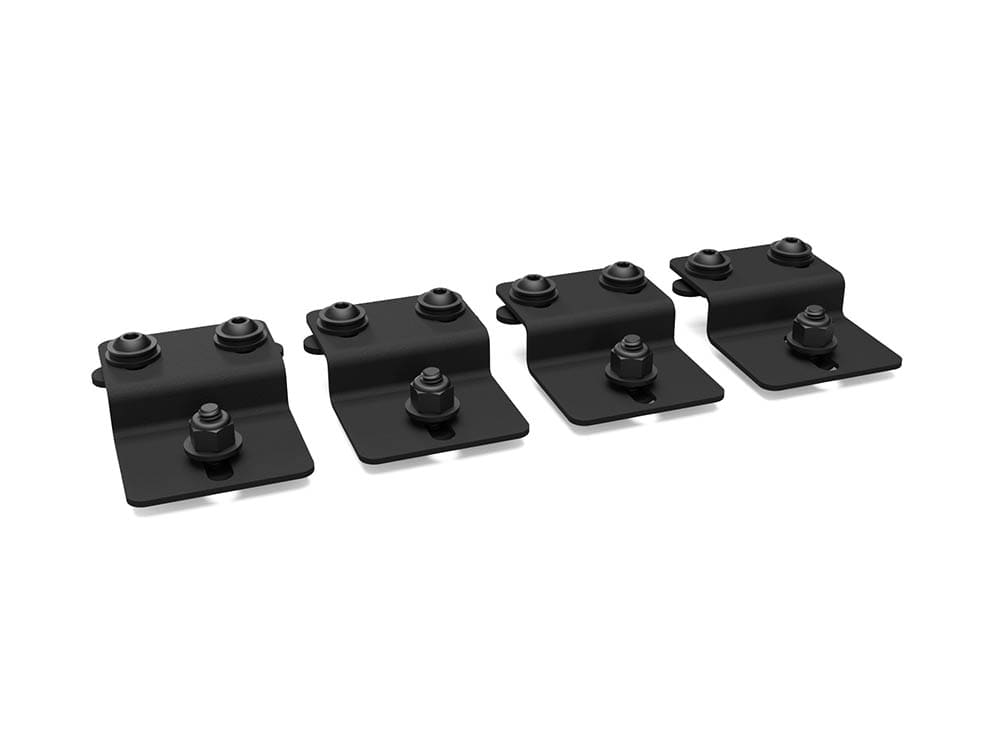

- 4x solar panel mounting brackets
- Includes stainless steel hardware
- 8x bolts, washers, and slide-in t-nuts
- 4x bolts and locknuts to mount to solar panel
COMPATIBILITY
-
The solar panel roof rack mounting kits are compatible with FVC crossbars and other 80/20 style extrusion crossbars.
| Fitment | Universal |
|---|---|
| Material | Stainless Steel |
| Weight | 0.5 kg |
| Install time | 0.5 hrs |
| Country of origin | China |
| Warranty | 1 YR |
| Dimensions (L × W × H) | UN0108B: 6.2 × 5.6 × 12.4 cm || UN0118B: 6.3 × 6.3 × 10.2 cm |
Typical install time: 0.5 hrs
