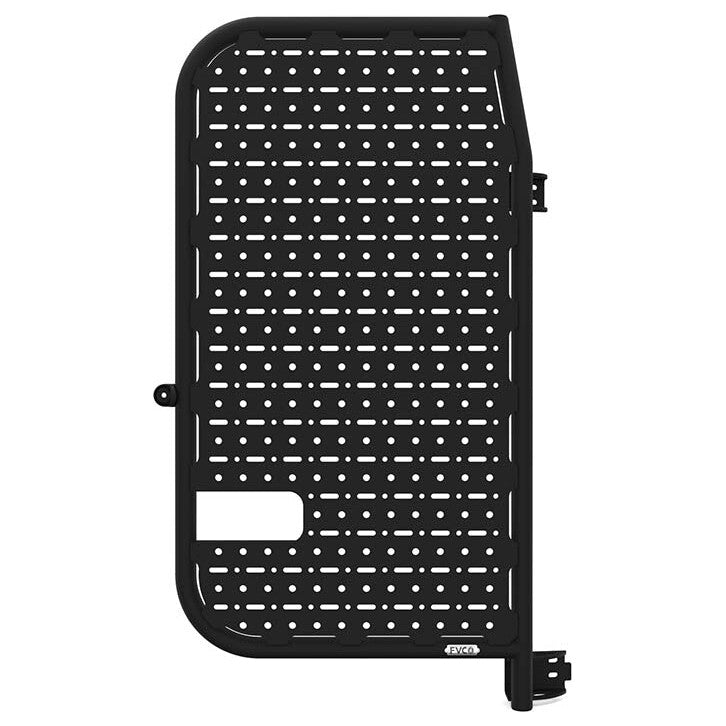

FVC Sprinter Van Rear Door Platform (Right)
Highlights
Choose options
Highlights
Highlights
Design
Durable aluminum construction with black powder-coated finis
- Durable aluminum construction with black powder-coated finish
Features
Custom fit for Sprinter vans for secure installation
- Custom fit for Sprinter vans for secure installation
Specs
Provides a sturdy platform for rear gear storage
- Provides a sturdy platform for rear gear storage
- Easy to install on rear door
Goes well with

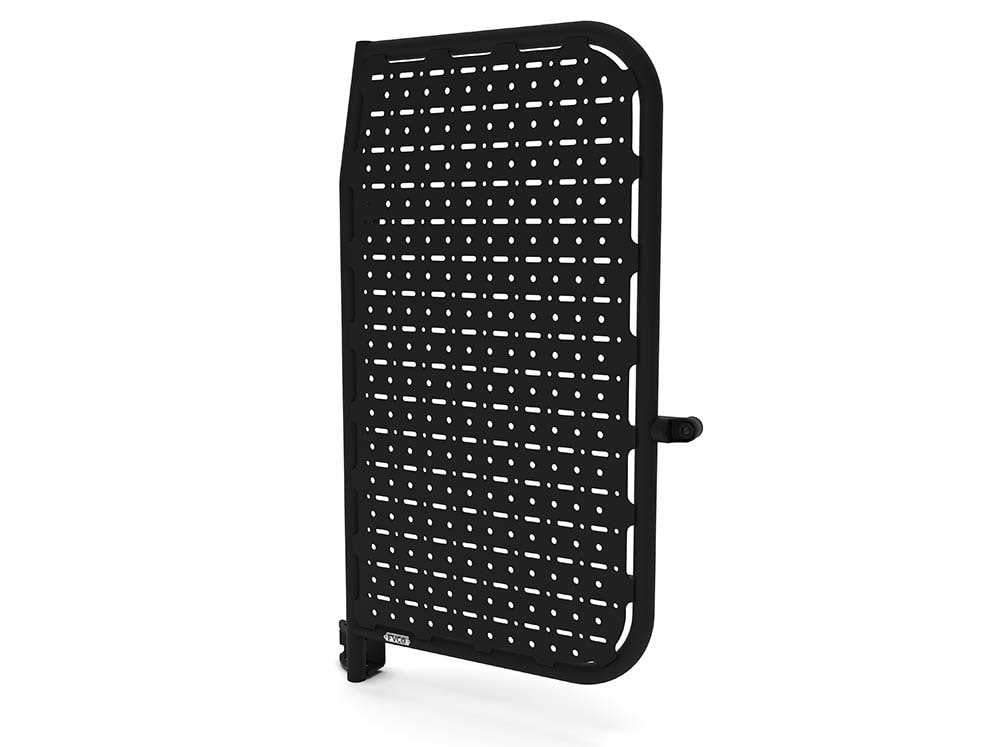

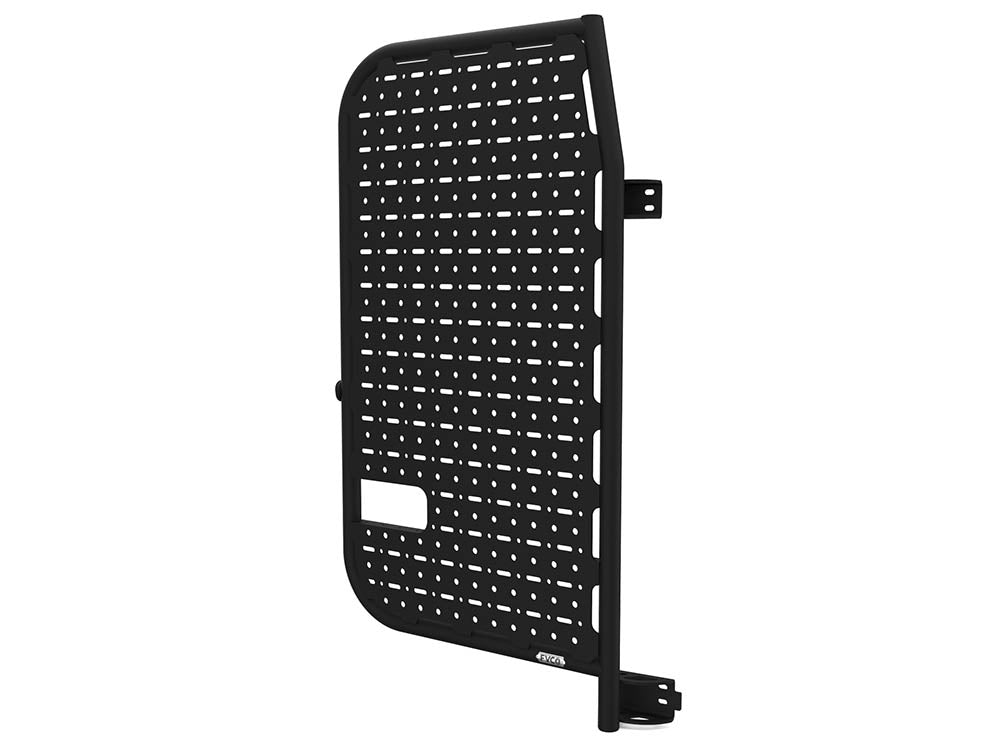

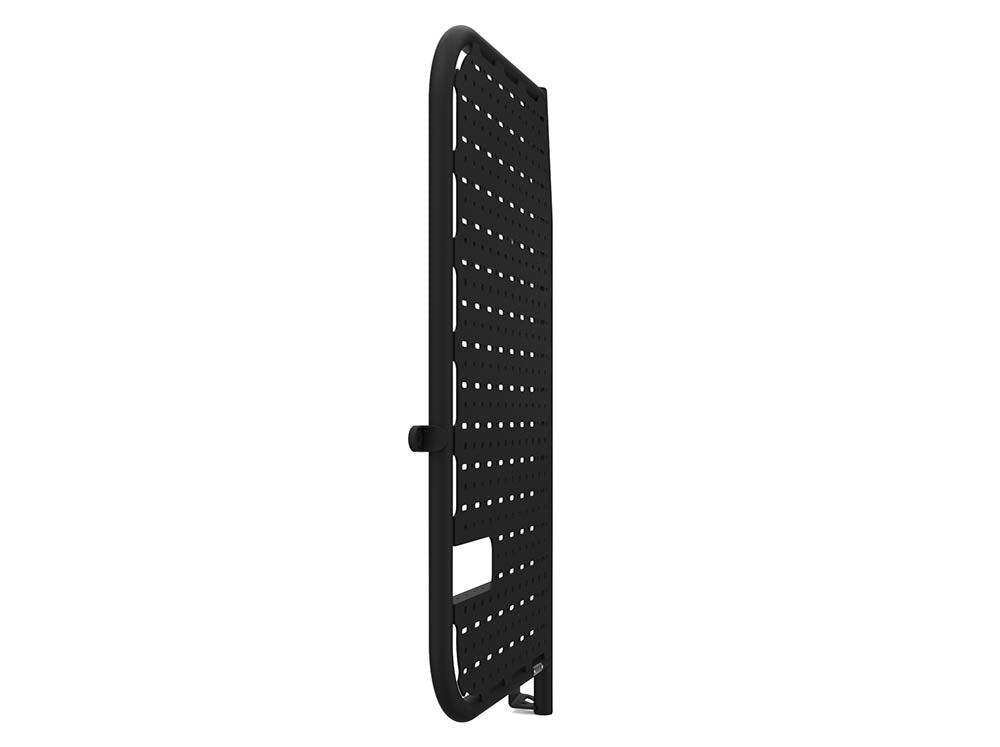

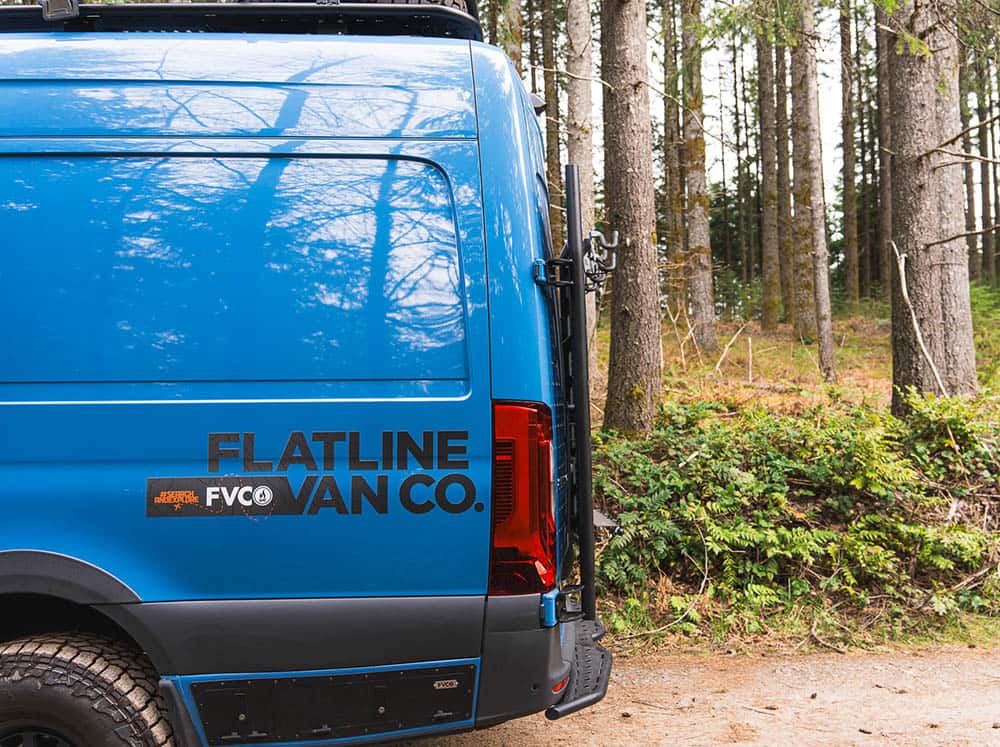

Flatline Van Co's Rear Door Platform gives your 2019+ Sprinter (VS30) or 2020+ Winnebago Revel additional gear carrying capacity at the rear of the van. The unique aluminium round frame and mounting plate combination makes it stronger and more versatile than other Sprinter rear gear carriers on the market, with a suggested weight limit of around 90 kg.

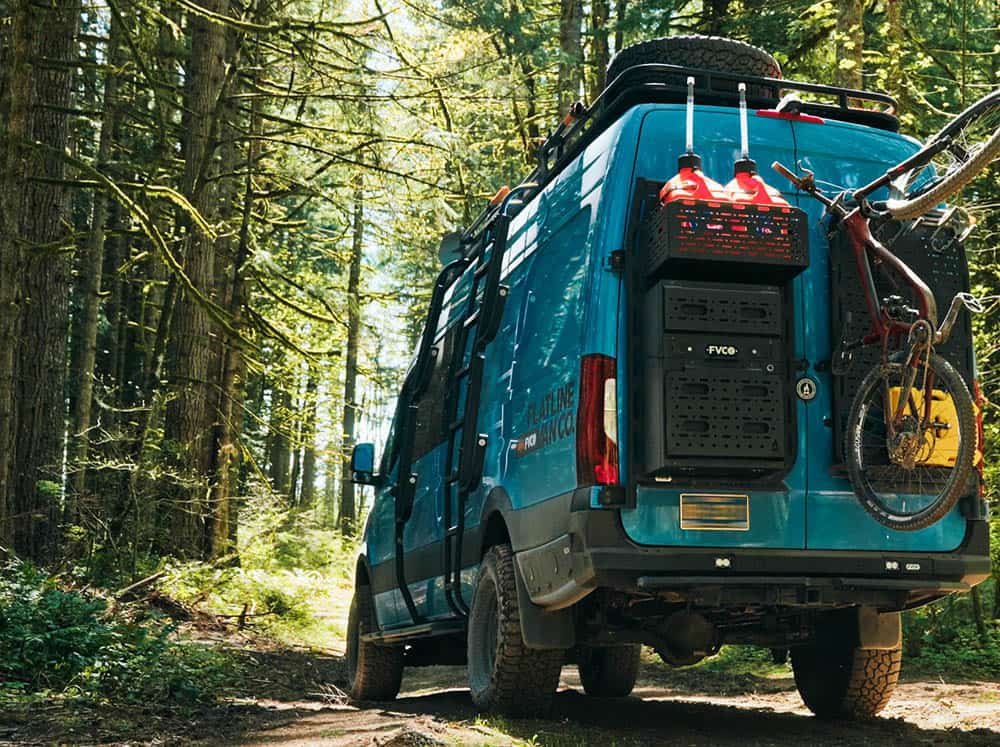

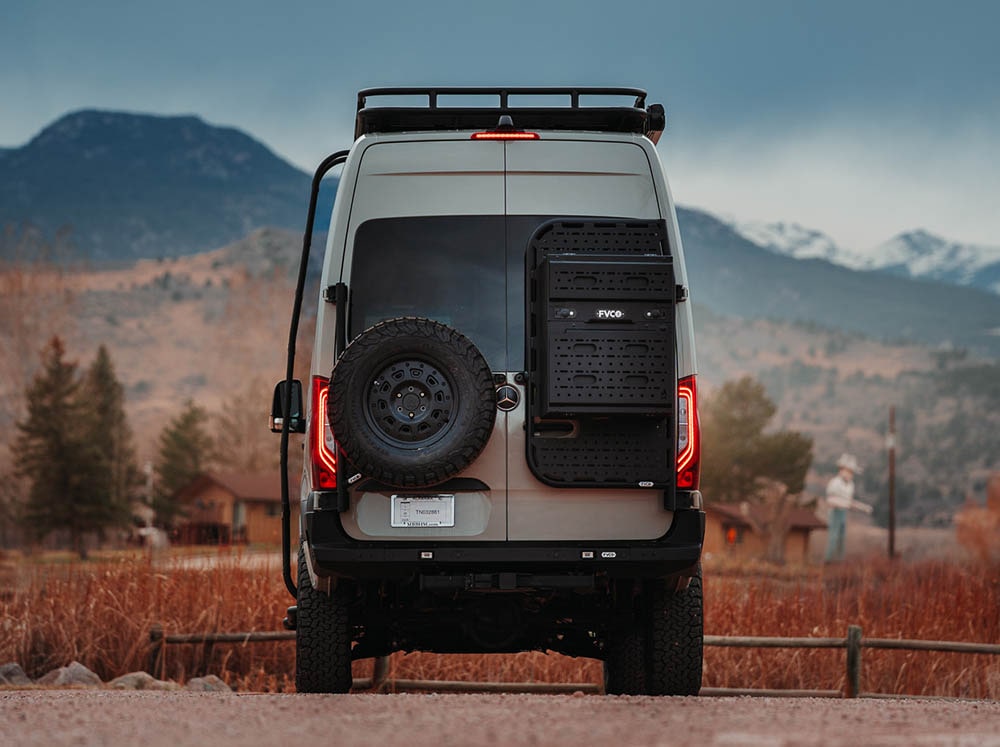

The combination of patterned mounting slots, and ½” and ⅜” holes, delivers endless mounting capabilities — configure the platform to carry almost anything: bikes, cargo boxes, MaxTrax, Rotopax, snowboards/skis, and more, with accessories that are easy to swap out as needed. The mountable surface sits flush with the tubing, so there's plenty of room for loading up additional gear.

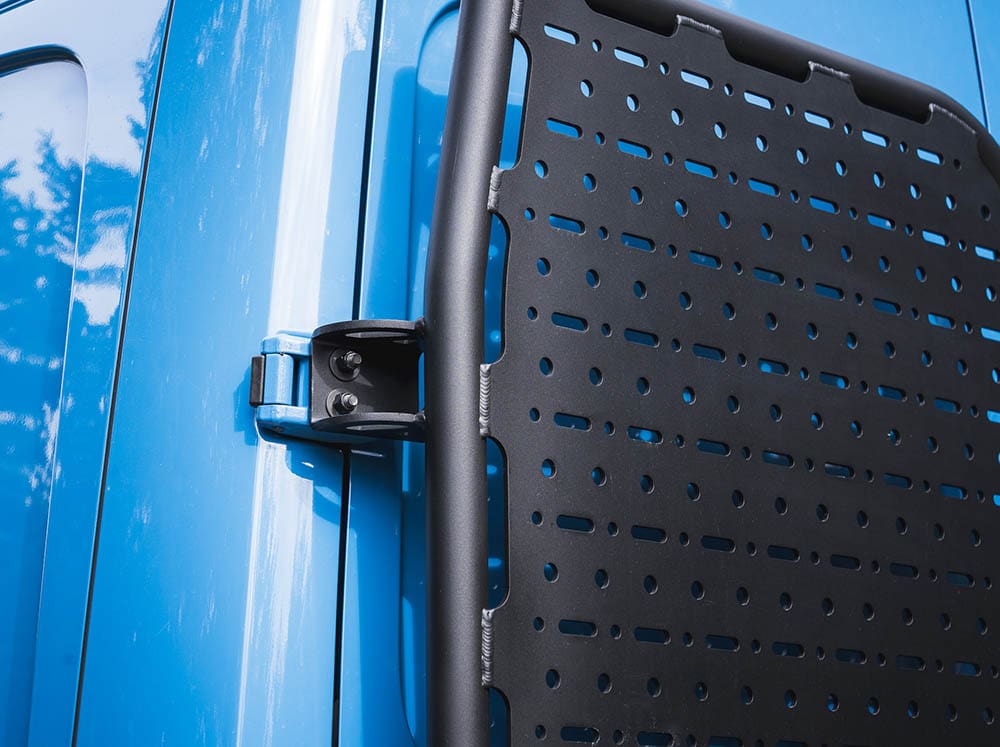

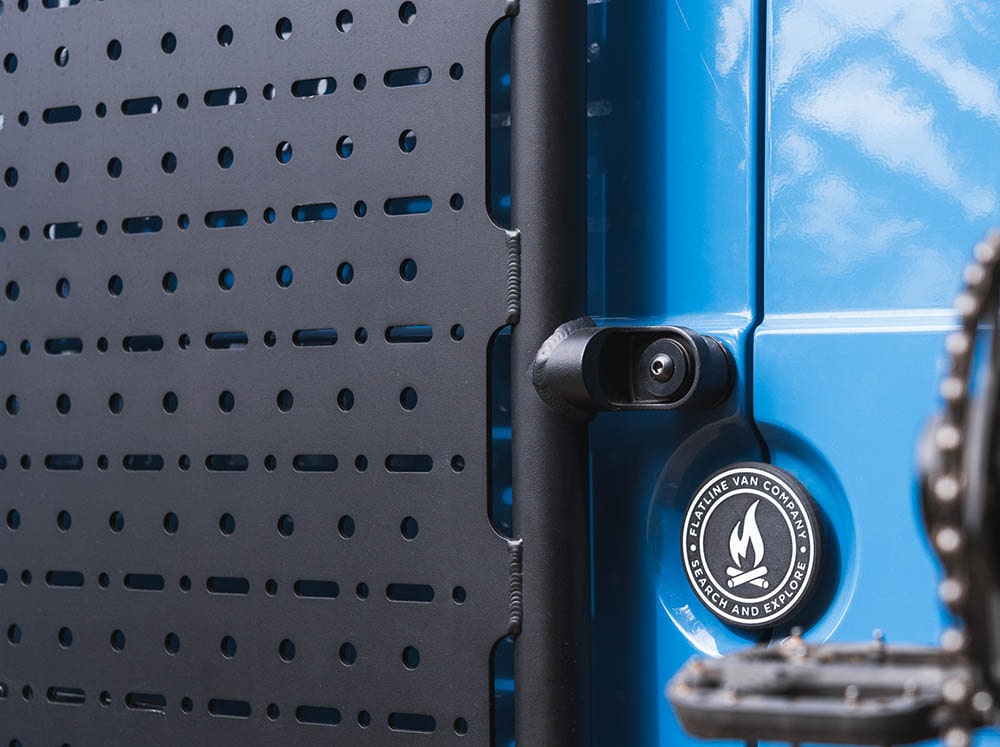

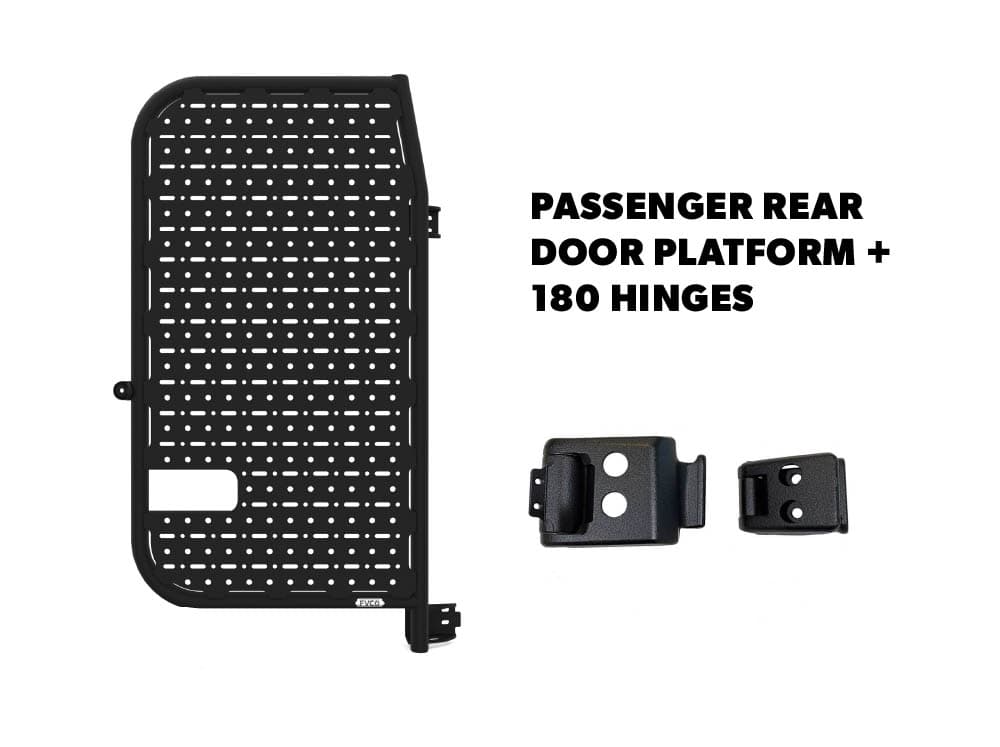

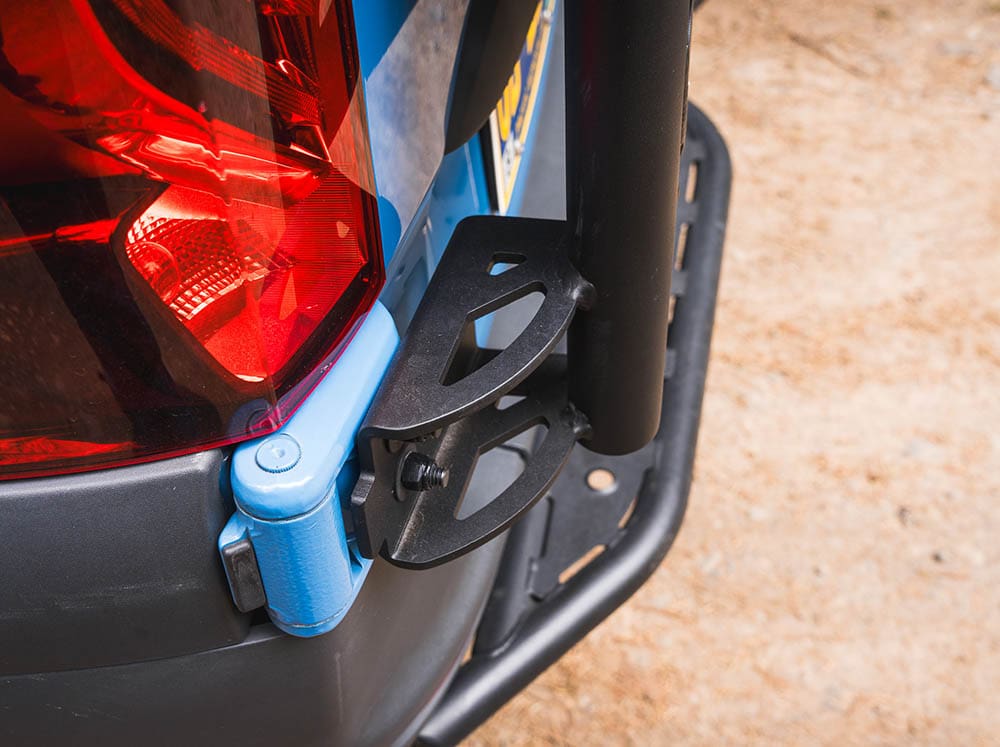

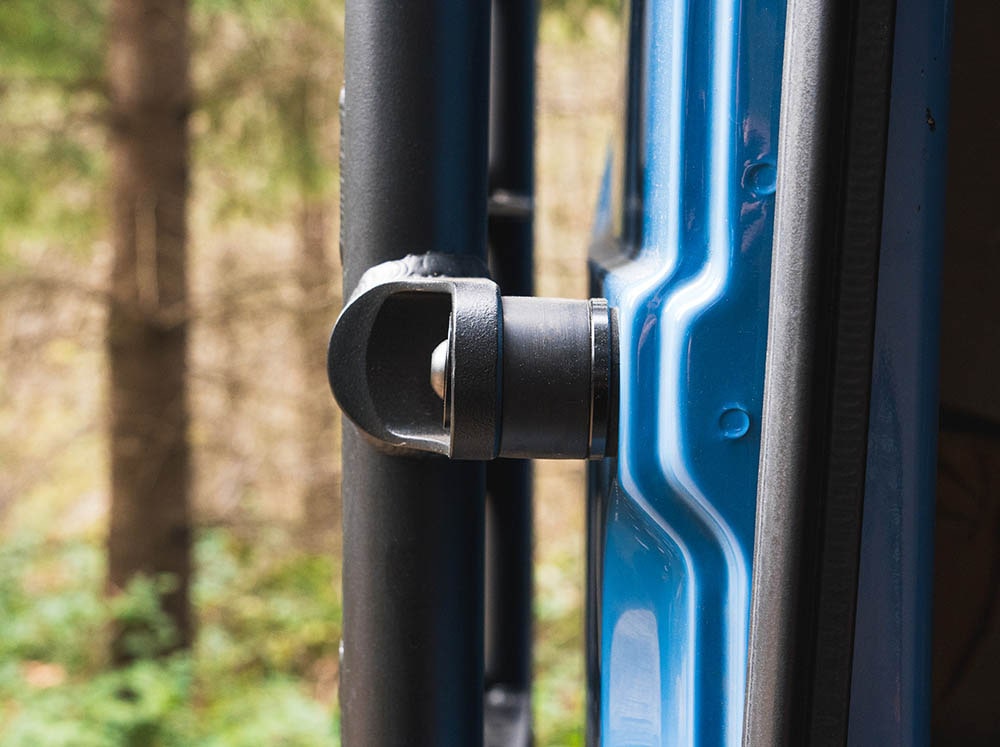

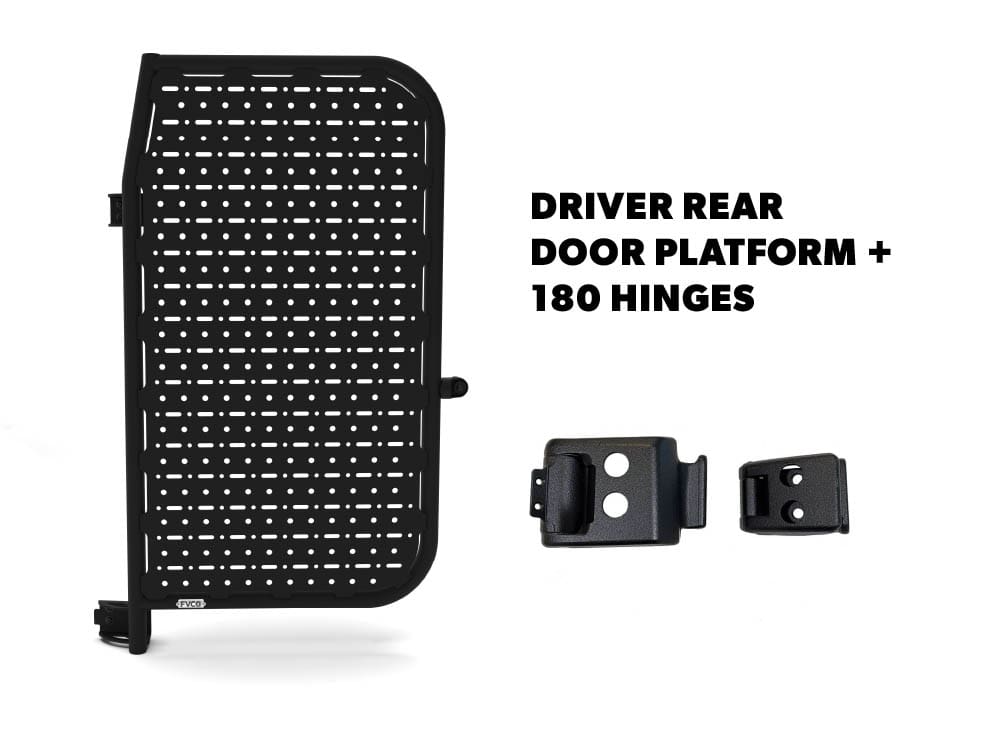

Installation is simple and straightforward, and only requires drilling a single hole in the door — FVC's years of R&D found that's what it takes for a sturdy, reliable rear platform without compromises or unappealing design features. That third mounting point to the door features FVC's dual-shock silicone damper, which absorbs impact in both directions to protect your doors — a first in the van industry. The platform is designed to mount to 180 degree hinges.
DETAILS
- Fits the right-hand rear door

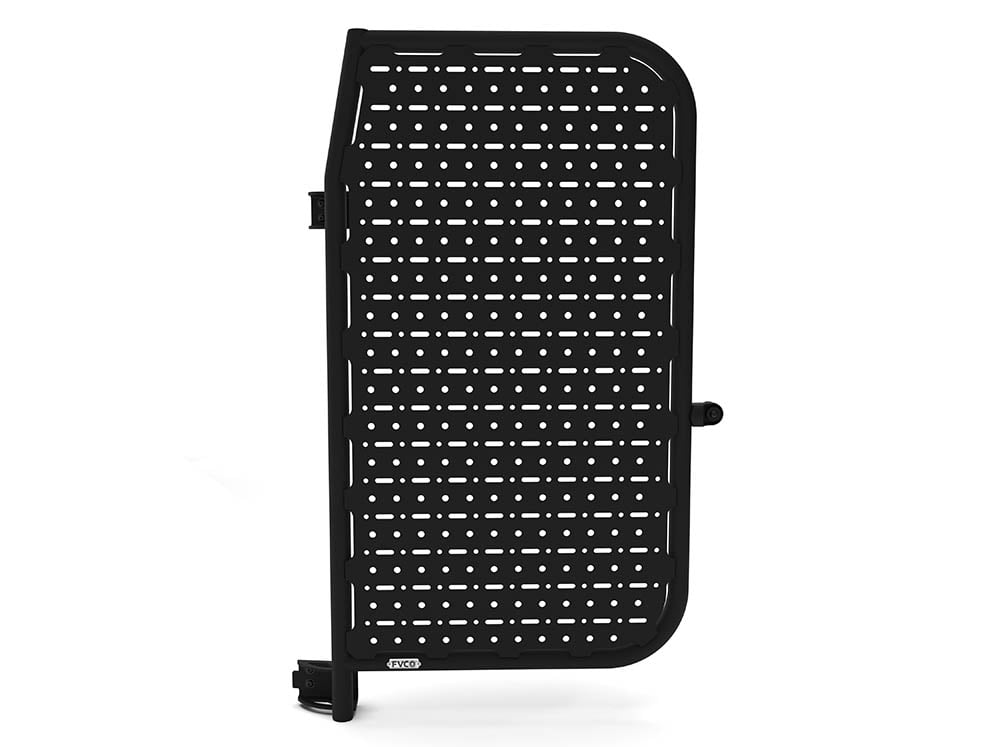

- Robust 1.75” aluminium round frame, and 5 mm aluminium mounting plate
- Patterned 1/2” and 3/8” holes for mounting accessories

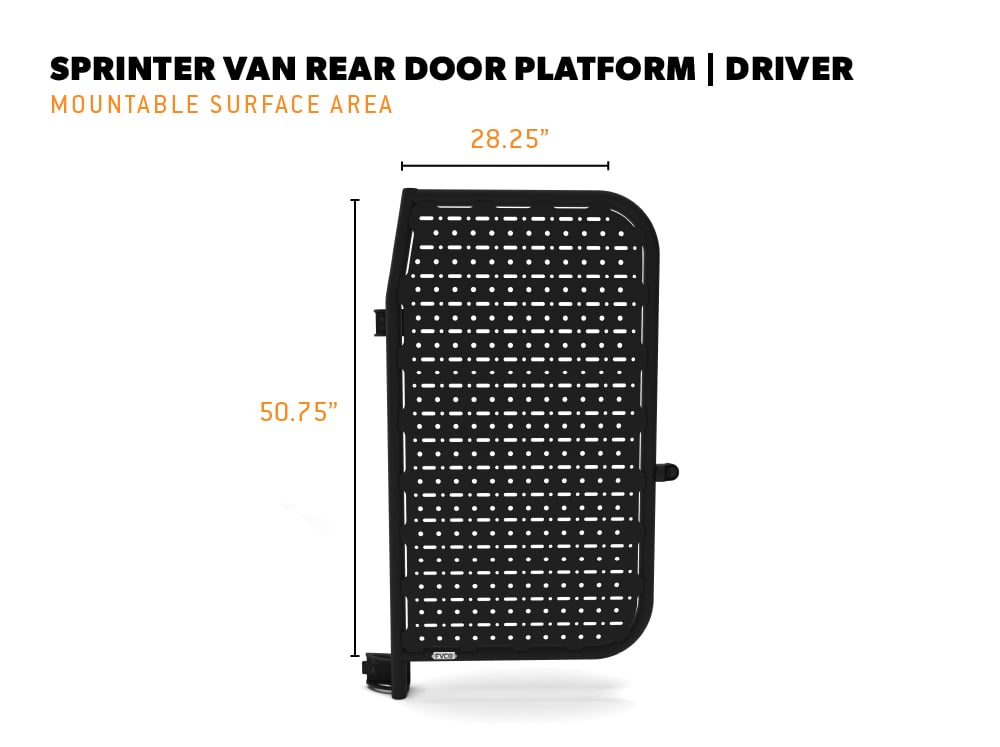

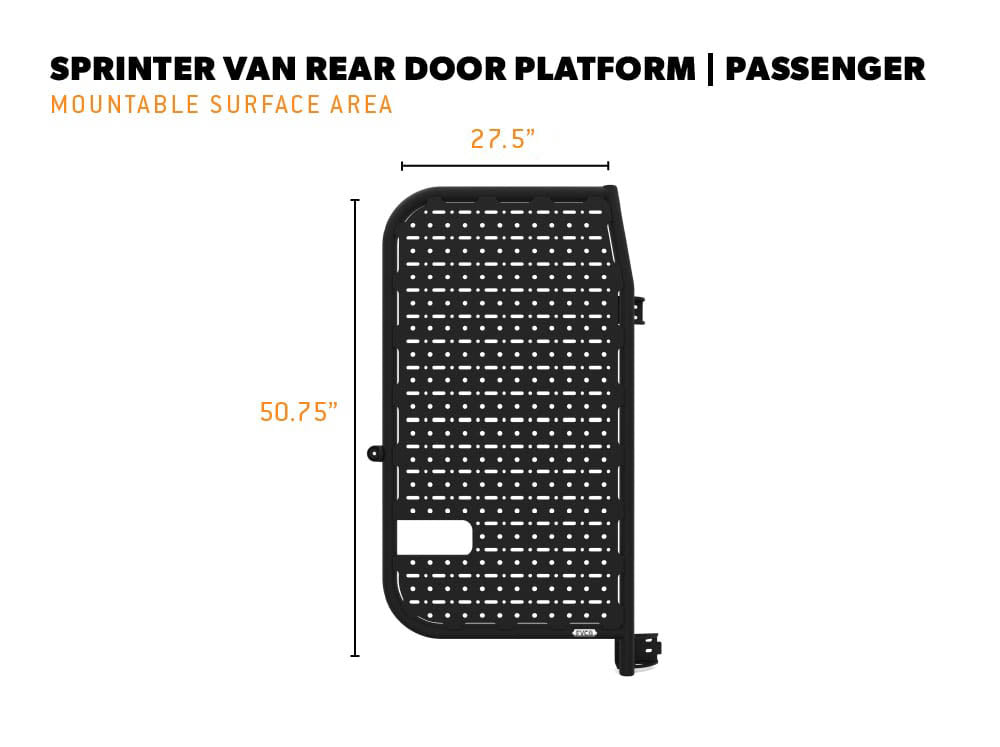

- Mountable surface area: 1290 mm tall by 700 mm wide
- Overall dimensions: 1335 mm tall by 745 mm wide
- Follows the body lines of your Sprinter van
- Add our Rear Platform Mounting Posts for added versatility
COMPATIBILITY
- 2019+ Mercedes Benz Sprinter Vans (VS30)
- 2020+ Winnebago Revel
- 2022+ Jayco Terrain
NOTE: Does not work on vans with rear windscreen wipers due to motor location.
| Fitment | 2019+ Mercedes-Benz Sprinter 1500, Sprinter 2500 |
|---|---|
| Wheelbase | 144, 170 |
| Material | Aluminium |
| Weight | 22.6 kg |
| Install time | 1 hr |
| Country of origin | China |
| Warranty | 1 YR |
| Dimensions (L × W × H) | SP1131B: 14 × 99.1 × 147.3 cm || SP1108B: Box 1: 14 × 99.1 × 147.3 cm | Box 2: 10.2 × 15.2 × 15.2 cm |
Typical install time: 1 hrs
