Sprinter Van Bed System — MWB

Adventure. Sleep. Repeat. Our Sprinter Van Bed is designed to help you do just that. Ditch the saggy plywood bed frame and upgrade your van and your sleep with one of our beds. Top it off with our Sprinter mattress for the ultimate in comfort.

The Sprinter van bed is available in two models that are both DIY-mount and Adventure Wagon compatible. Select the 3-panel option (Standard) or the 2-panel option (Flarespace).

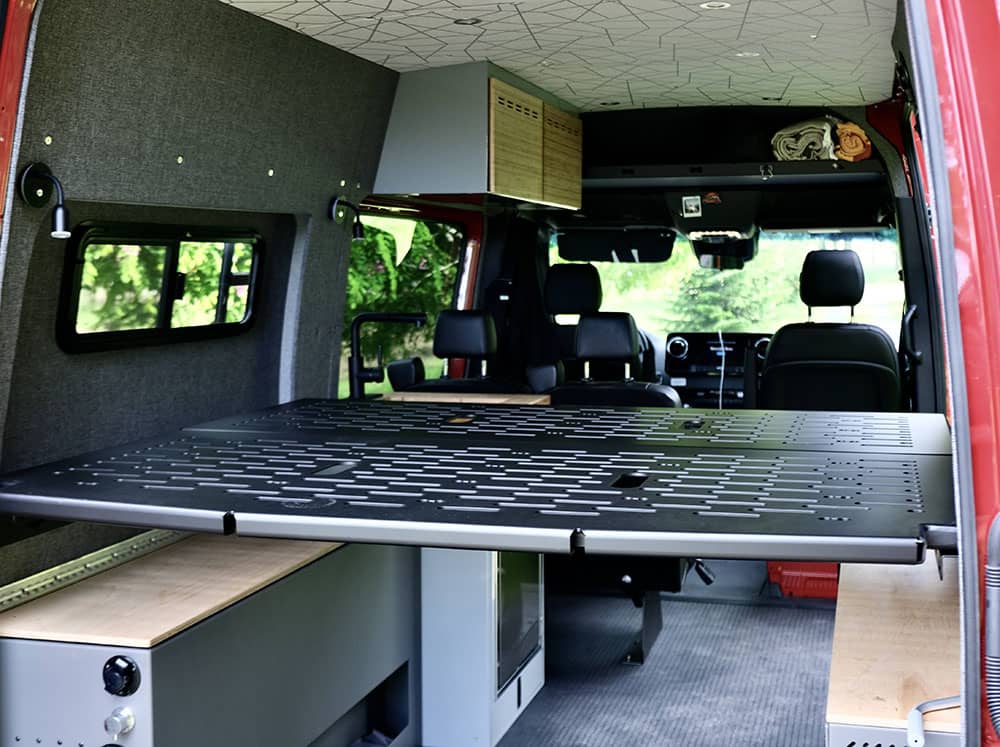

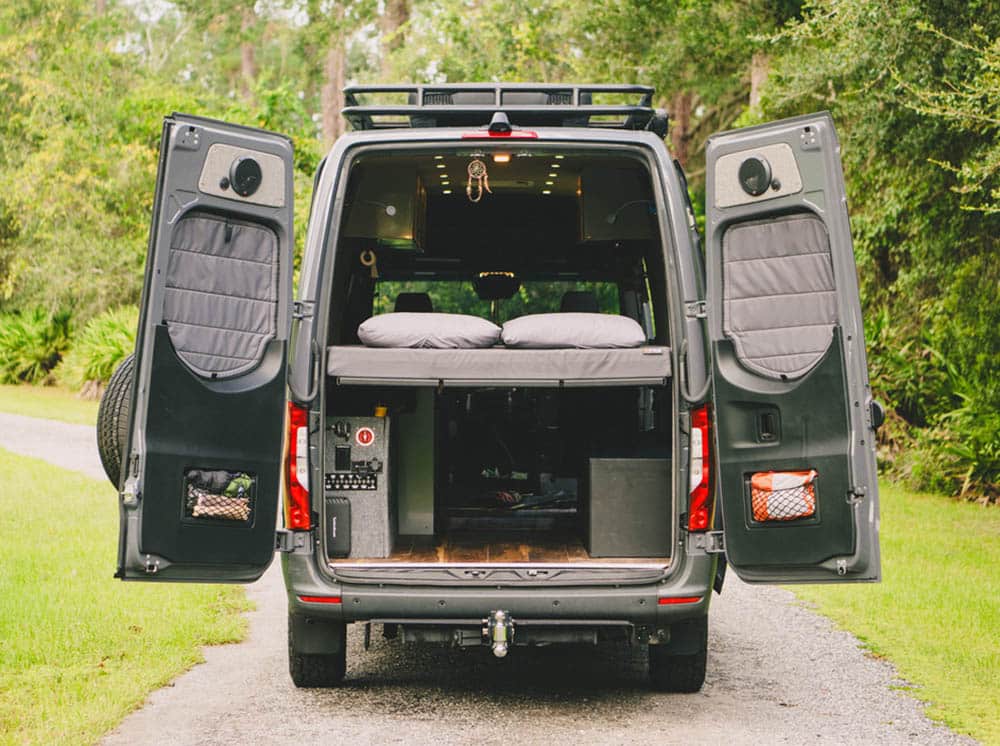

Our Van Bed Systems are easy to install, and you can mount them up to 1270 mm (50”) off the floor, so you can choose to set up your bed according to your preferred sleeping height. We’ve had customers mount it as high as possible to gain more storage in their garage area for mountain bikes or even add additional sleeping space directly underneath the bed.

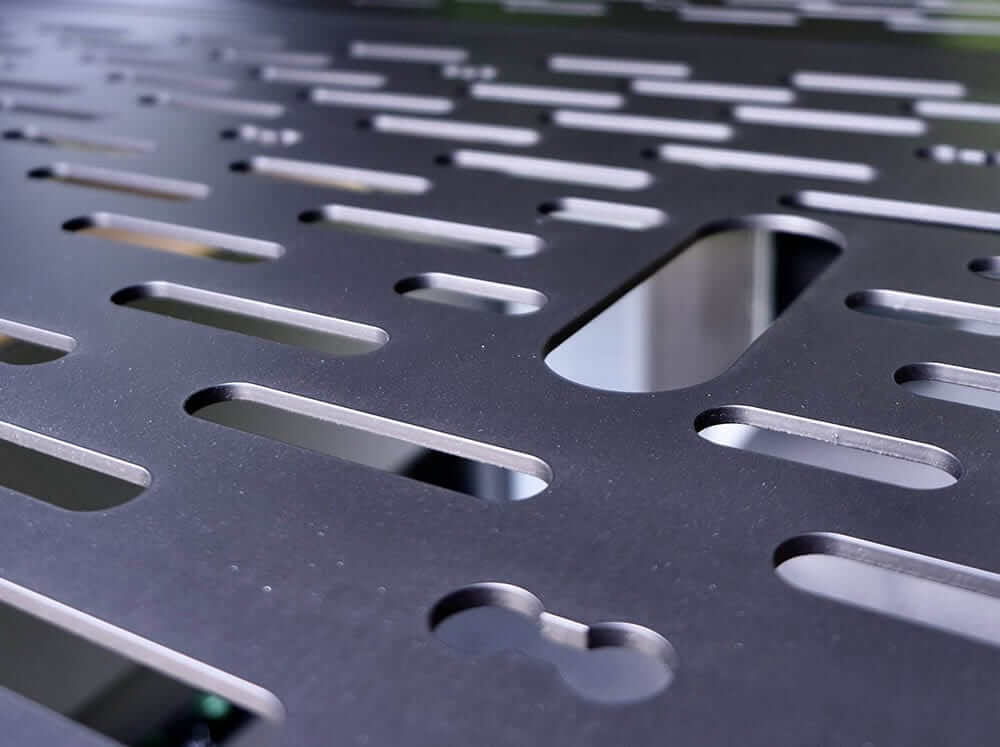

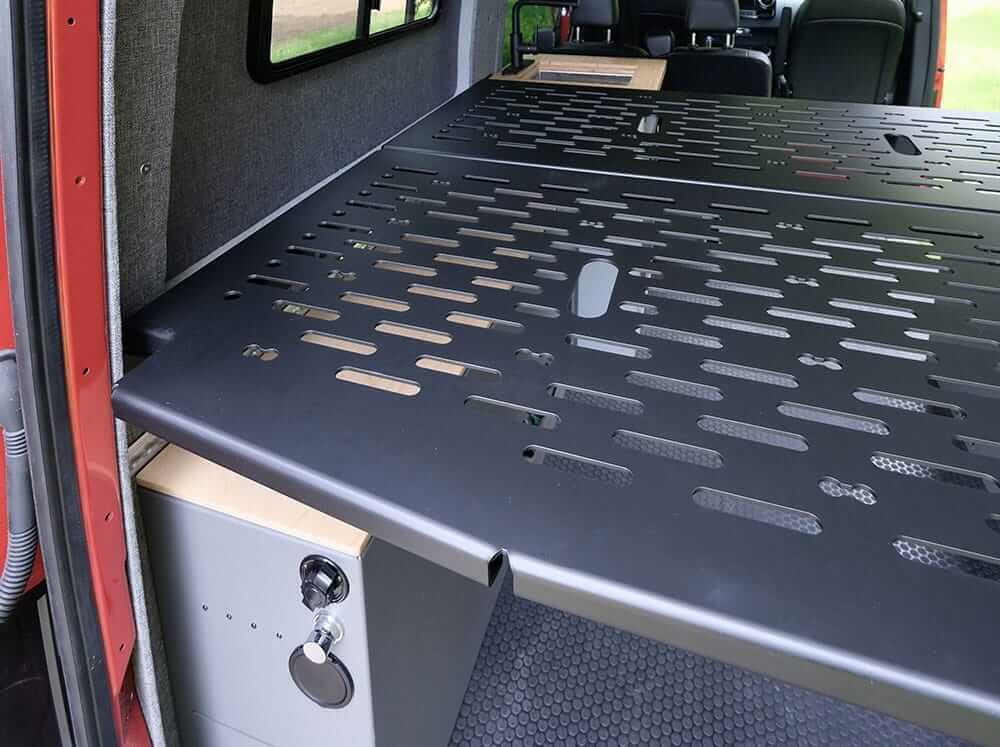

The bed panels are made with 3/16" aluminium that's laser cut, formed, and finished in a black powder coat. Our laser-cut pattern helps keep everything lightweight and robust. Each bed platform panel has L-track cutouts that allow you to hang accessories directly underneath the bed. Large hand-sized cutouts make the panels easy to handle and provide ample ventilation to the bottom of your mattress, decreasing the likelihood of moisture being trapped. The bed panels are designed to be removed if desired when not in use, or you can stack the panels onto the rear panel to create more space.

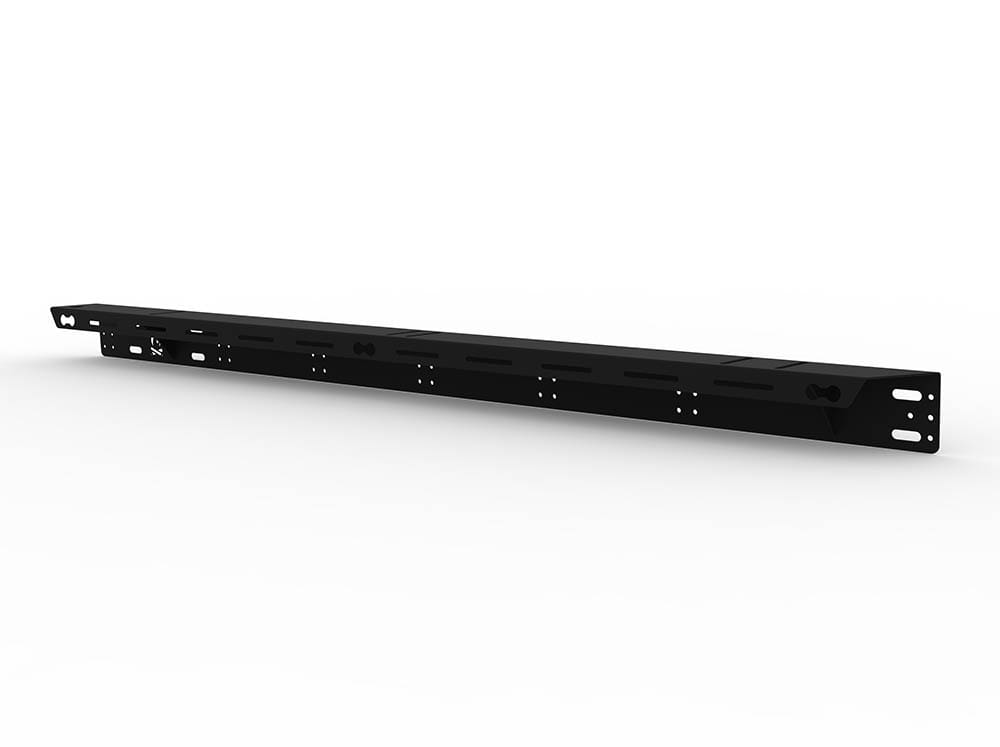

The bed rails are 12 GA powder-coated steel and have various hole options to make fine-tuning your desired height easy and accommodate multiple mounting options. This bed comes ready to install with detailed installation instructions, but please double-check your measurements before mounting.

Please read the descriptions below for more information about our modular bed system, or get in touch with us and we will be happy to chat about your Sprinter van bed needs.

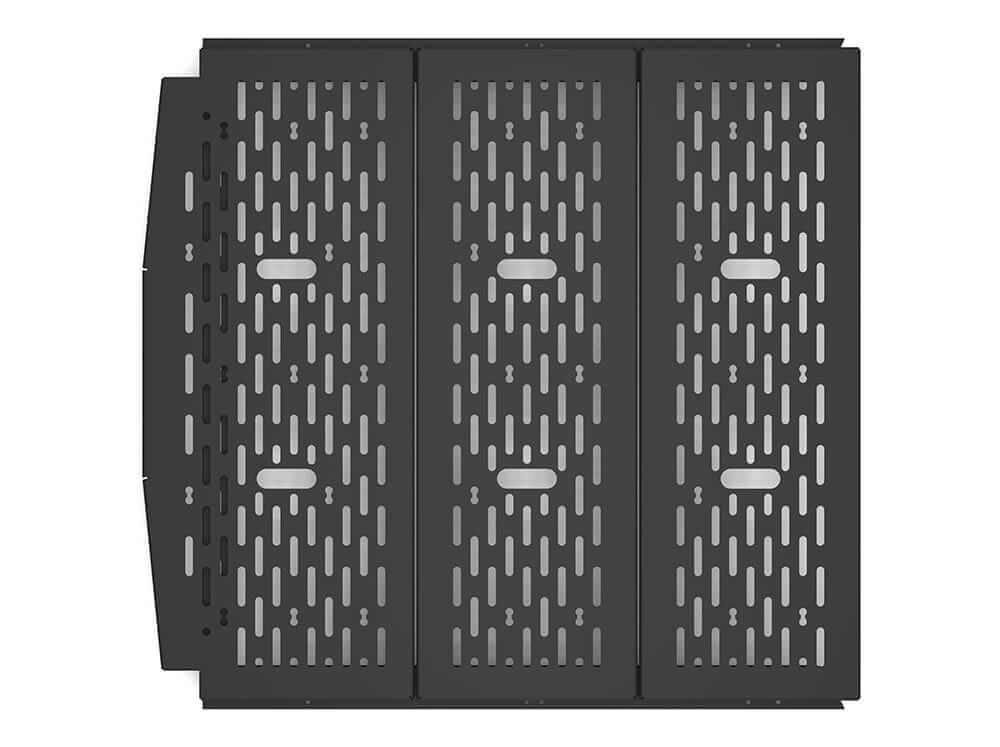

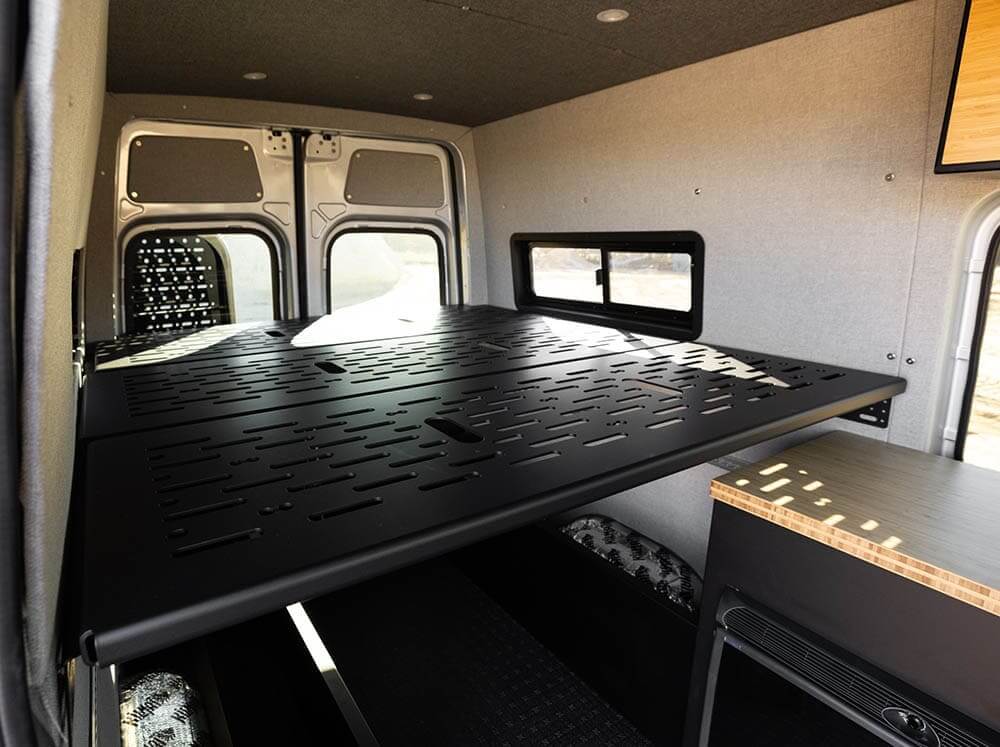

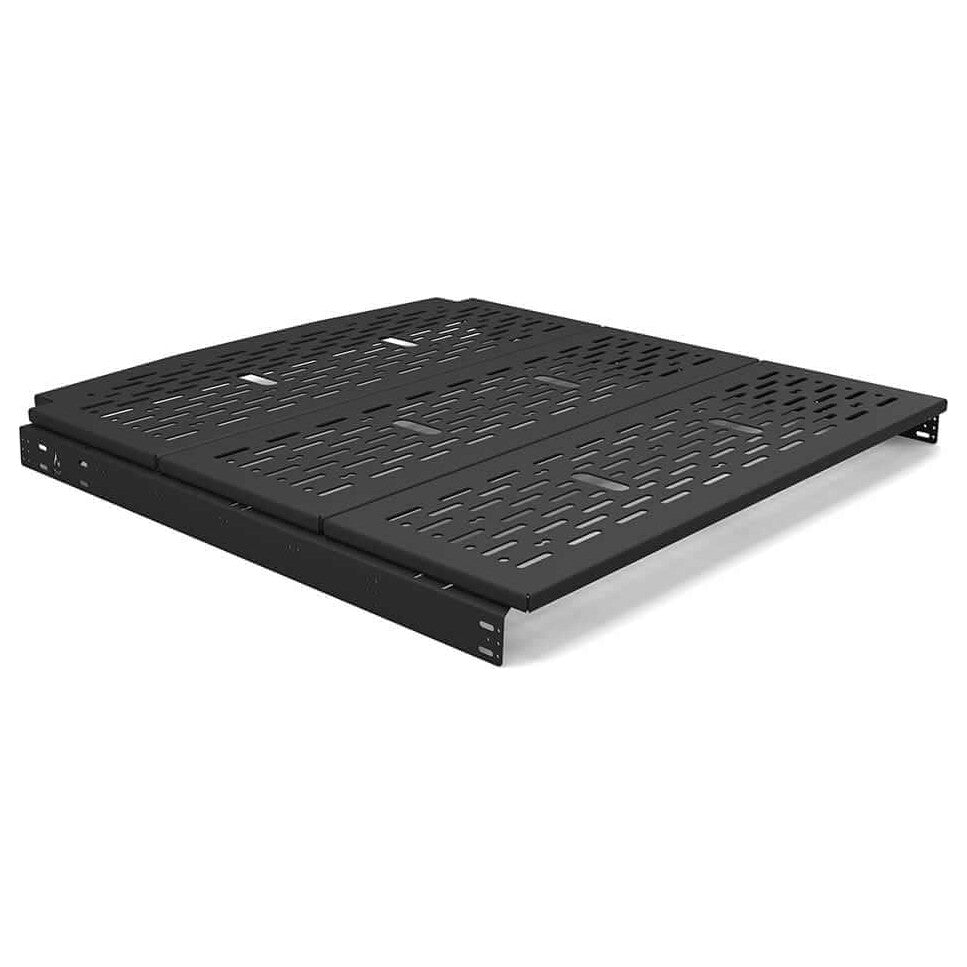

Standard 3-Panel Bed - DIY and Adventure Wagon Compatible

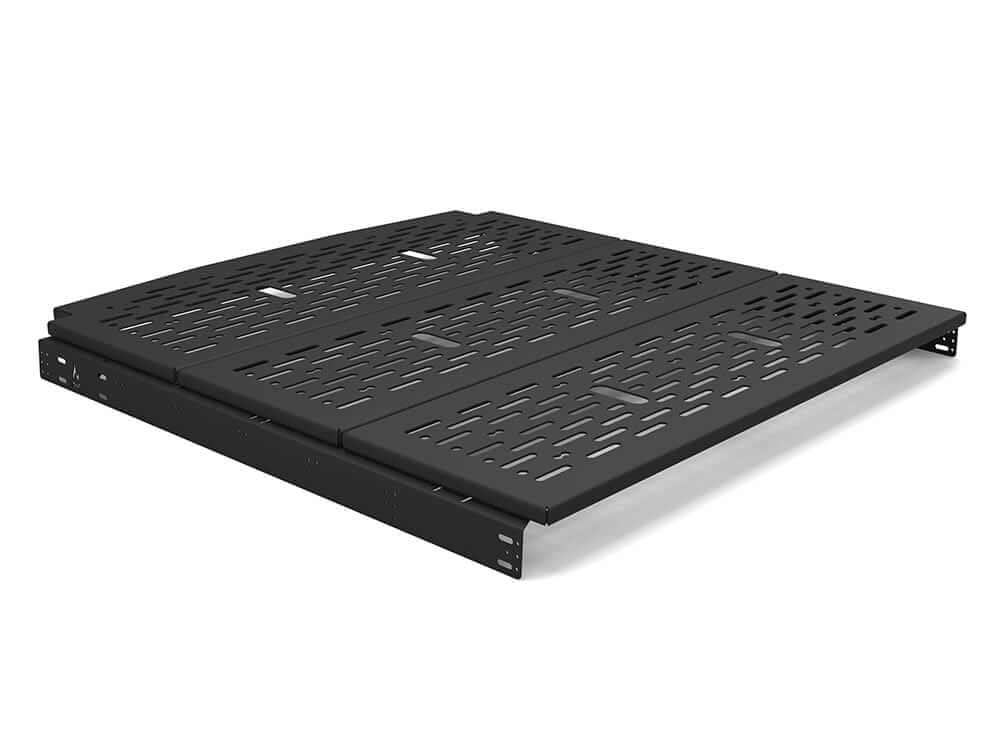

Our versatile 3-panel Sprinter Bed System features mounting holes for a DIY install and full compatibility with Adventure Wagon interior kits. For a DIY mount, it’s designed to mount up to 1190 mm (47”) in height, and it has 3x laser-cut aluminium panels and steel bed rails.

The bed panels can be configured for a 1830 mm (72") long bed or a 1905 mm (75") long bed for taller people. Select the mounting slots for either option when putting the panels in place. Refer to the installation instructions for more information.

• 3 Removable Bed Panels Included
• Bed Panel Dimensions: Adjustable option of 1830 mm (72") or 1905 mm (75") long by 1665 mm (65.5") wide

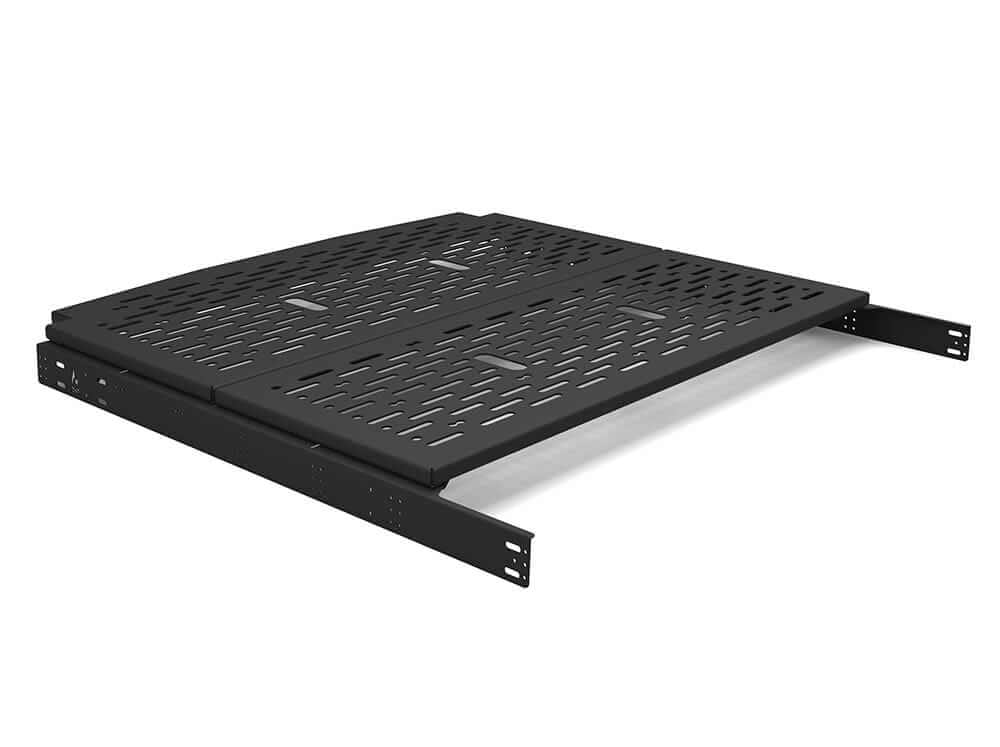

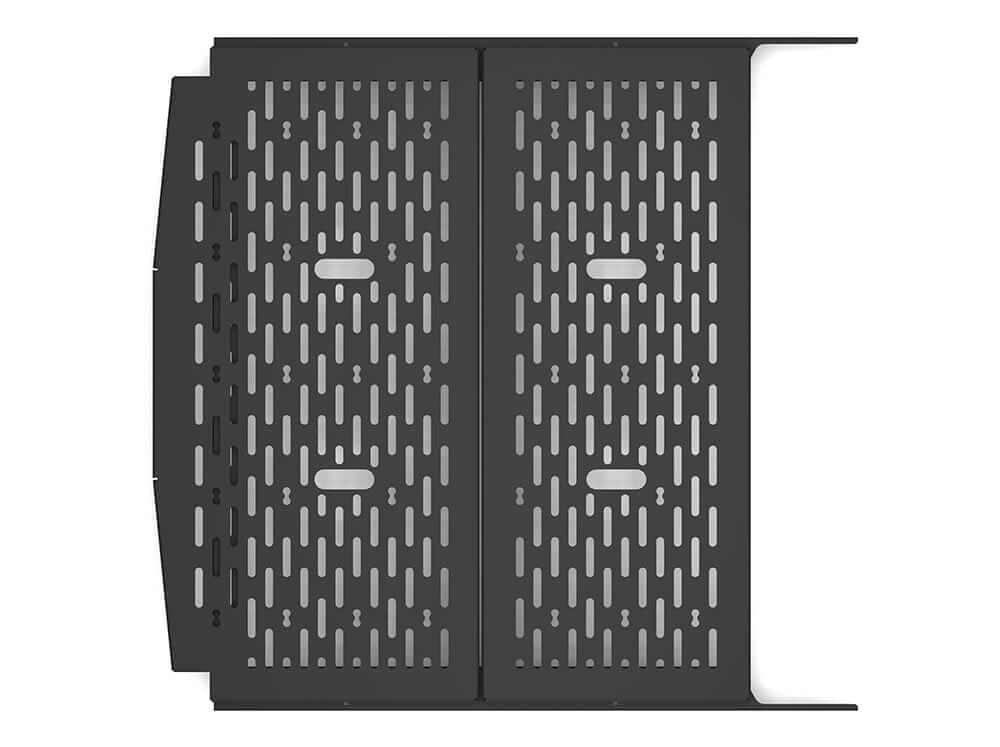

Flarespace 2-Panel Bed - DIY and Adventure Wagon Compatible

We designed the Flarespace compatible bed system so you can sleep sideways in your Sprinter van! If you already have a Sprinter equipped with Flarespace OR Vanspeed Capsules, you can easily mount this 2-panel bed system to gain more usable real estate in your van for sleeping sideways. This bed system features mounting holes for a DIY install and full compatibility with Adventure Wagon interior kits.

Option to Add Flare Trim Extension Brackets: For vans with flares, gain up to 150 mm (6") of length using our brackets that extend into the window trim. Designed for the 2-Panel Sprinter Bed System only.

• Compatible with Flarespace and Vanspeed Capsules
• 2 Removable Bed Panels Included
• Designed for Sprinter Vans with Flarespace
• Total Bed Panel Dimensions: 1525 mm (60") long by 1665 mm (65.5") wide
• Total Bed Dimensions with Flare Extension Brackets: 1675 mm (66") long by 1665 mm (65.5") wide

Sprinter Van Bed Brackets: The Sprinter Van Bed Systems can be installed without this bracket system, but it provides additional structural support. It also gives you more options for mounting your bed even higher than the window cavity, with extra assurance it will stay secure.

Sprinter Van Bed Bracket L-Track Kit: Add L-Track to your van build by pairing our Sprinter Bed Bracket L-Track with your Sprinter Van Bed Brackets. This floor-to-ceiling system gives you on-demand bed height adjustment and extra mounting points for gear. Pre-drilled holes align with the Bed Brackets for easy installation.

COMPATIBILITY

• 2007+ Mercedes-Benz Sprinter Vans (not compatible with passenger vans)
