FVC Sprinter Van Rear Door Platform (Left)
Highlights
Choose options
Highlights
Highlights
Design
Durable aluminum construction with black powder-coated finis
- Durable aluminum construction with black powder-coated finish
Features
Custom fit for Sprinter vans for secure installation
- Custom fit for Sprinter vans for secure installation
Specs
Provides a sturdy platform for rear gear storage
- Provides a sturdy platform for rear gear storage
- Easy to install on rear door
Goes well with

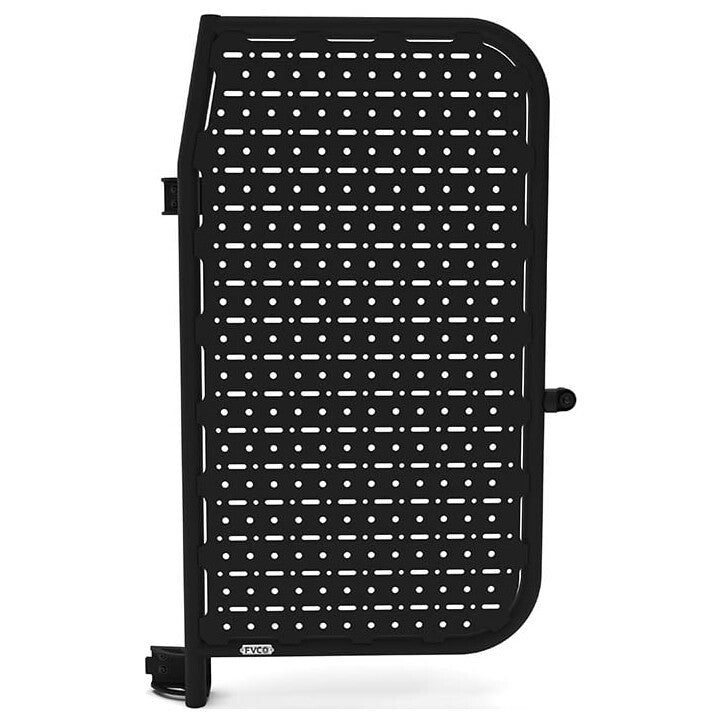

Flatline Van Co's Rear Door Platform gives your 2019+ Sprinter (VS30) serious gear-carrying capacity at the rear of the van. The unique combination of a 44mm aluminium round frame and 5mm aluminium mounting plate makes it stronger and more versatile than other Sprinter rear gear carriers on the market, with a suggested weight limit of 91kg.
Patterned mounting slots plus 13mm and 10mm holes deliver endless mounting capabilities, and the mountable surface sits flush with the tubing so there's plenty of room for loading up gear. Add bikes with the 1Up tray, cargo boxes, MaxTrax, Rotopax, snowboards/skis and more — FVC designed the platform to be incredibly versatile, with accessories that are easy to swap out as needed.
Installation is simple and only requires drilling a single hole in the door. That third mounting point carries FVC's dual-shock silicone damper, which absorbs impact in both directions to protect your doors — a first in the van industry, and after years of R&D it's what makes a rear platform sturdy and reliable without compromises or unappealing design features. The platform is designed to mount to 180 degree hinges. One compliance note: a rear platform can obscure the factory tail and indicator lights at some angles, so ADR rules apply — supplementary brake/indicator lighting is required, and we include it.
DETAILS
- Robust 44mm aluminium round frame, and 5mm aluminium mounting plate
- Patterned 13mm and 10mm holes for mounting accessories
- Driver side mountable surface area: 1289mm tall by 718mm wide
- Driver side overall dimensions: 1334mm tall by 762mm wide
- Passenger side mountable surface area: 1289mm tall by 698mm wide
- Passenger side overall dimensions: 1334mm tall by 743mm wide
- Follows the body lines of your Sprinter van
- Add our Rear Platform Mounting Posts for added versatility
COMPATIBILITY
- 2019+ Mercedes Benz Sprinter Vans (VS30)
| Fitment | 2019+ Mercedes-Benz Sprinter 1500, Sprinter 2500 |
|---|---|
| Wheelbase | 144, 170 |
| Material | Aluminium |
| Weight | 19.1 kg |
| Install time | 1 hr |
| Country of origin | China |
| Warranty | 1 YR |
| Dimensions (L × W × H) | SP1115B: 15.2 × 73.7 × 149.9 cm || SP1116B: Box 1: 10.2 × 15.2 × 15.2 cm | Box 2: 10.2 × 15.2 × 15.2 cm | Box 3: 15.2 × 73.7 × 149.9 cm |
Typical install time: 1 hrs
Not confident doing it yourself? Get in touch and we'll point you to a fitter near you.
Ships from FVC USA. Orders delivered within Australia are tracked door to door. Shipping is calculated at checkout. See our shipping policy for details.
Rear boxes can obscure the factory tail/indicator lights at some angles — ADR requires supplementary brake/indicator lighting, which we include.
