FVC Van Rear Storage Box - Small
Highlights
Choose options
Highlights
Highlights
Design
3.5 cubic feet of lockable storage
- 3.5 cubic feet of lockable storage
Features
Door doubles as a work surface
- Door doubles as a work surface
Specs
Durable aluminum construction
- Durable aluminum construction
- Adjustable hinges for smooth door movement
- Easy installation with included hardware
Goes well with
Flatline Van Co's Small Rear Storage Box is a compact but mighty compartment that adds over 99L of durable, lockable exterior storage to your van. Note that rear boxes can obscure the factory tail and indicator lights at some angles, so ADR requires supplementary brake and indicator lighting — which we include.

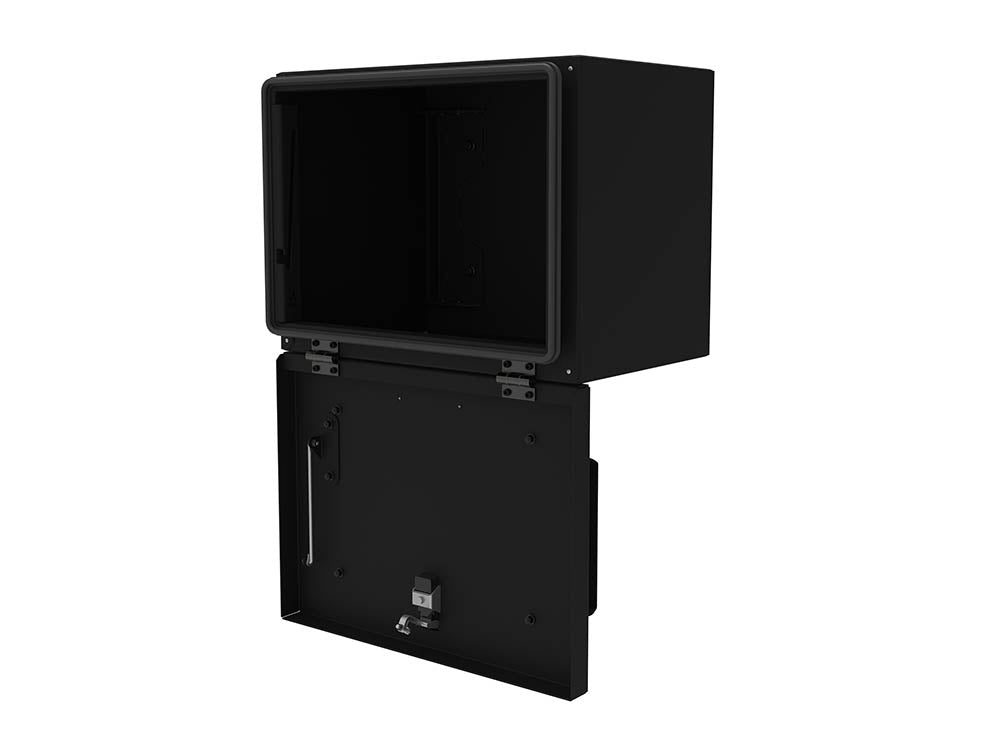

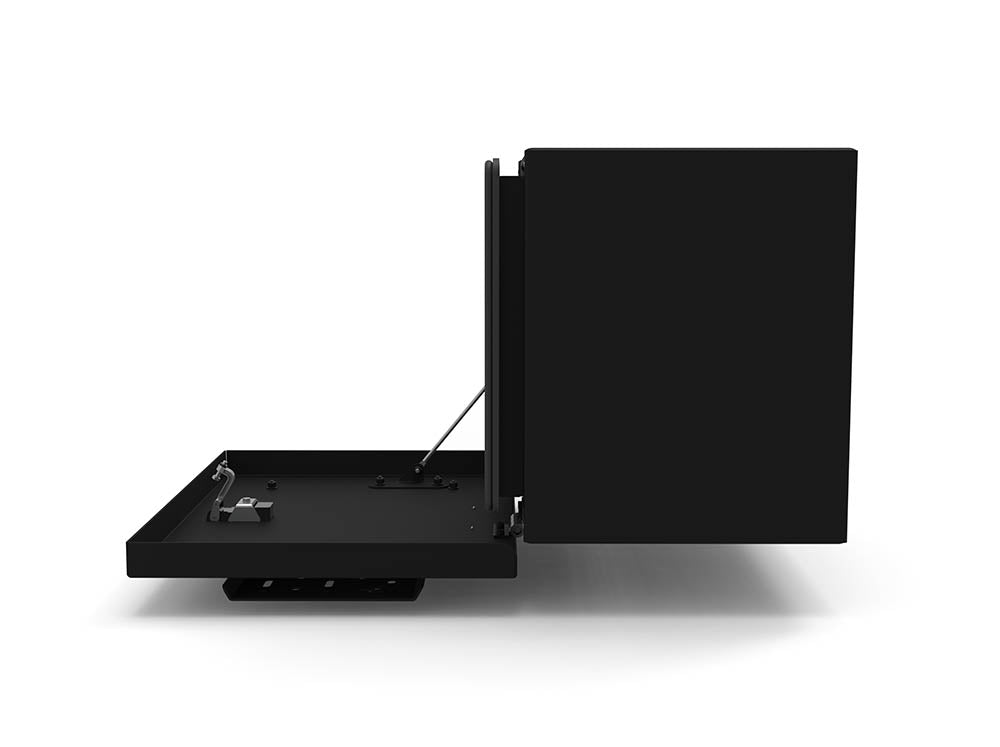

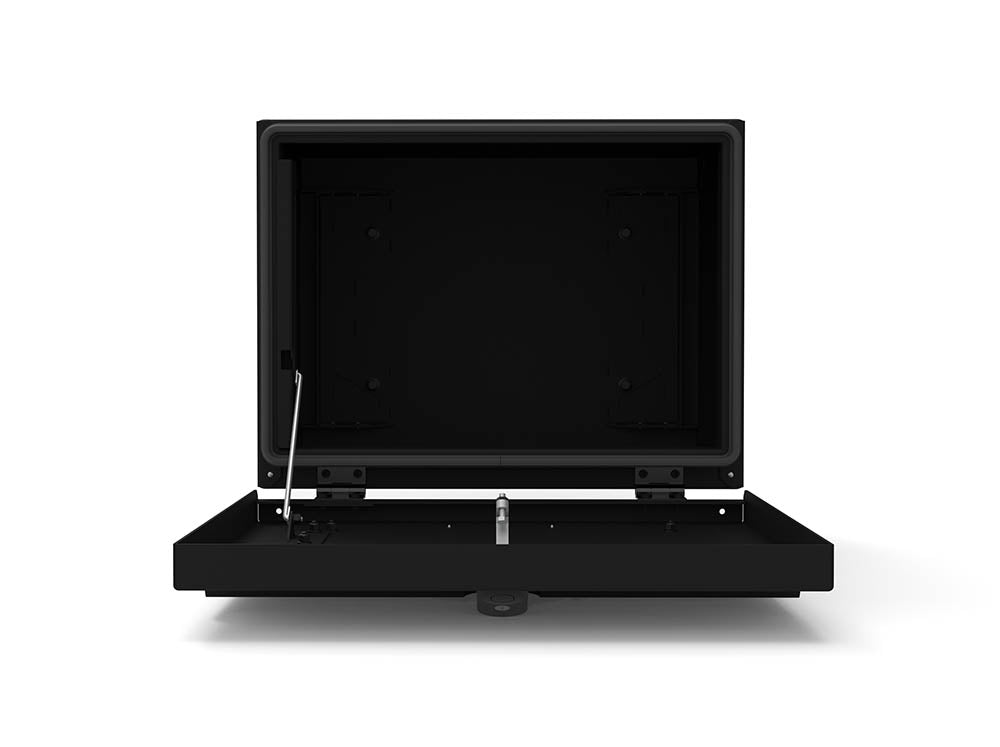

The box goes beyond basic storage with a door that functions as a work surface and an accessory load panel for essential gear. The included down-stay rod holds the door at 90 degrees for instant counter space whenever needed, and can be removed to open the door fully. Behind the accessory load panel is a large opening for easy access, with holes and slots for mounting accessories using 10mm hardware.
Crafted from fully welded aluminium with precision-machined hinges, it's made for year-round function: the door closes tightly on a weatherproof bulb seal to keep weather out, a weatherproof, lockable latch keeps contents secure, and the adjustable torque hinges can be tightened for slower door opening. Prefer a shelf? Add a half-depth or full-depth Storage Box Shelf for enhanced organisation.
It installs directly to FVC's Rear Door Platforms for Sprinter, Transit and Promaster vans in less than 30 minutes with four hex bolts.
DETAILS
- Adds over 99L of storage
- Durable exterior powder coat
- Fully welded with lightweight aluminium
- Lockable latch for security
- Adjustable torque hinges
- Ready to add a Storage Box Shelf (not included)
- Includes stainless steel mounting hardware
- 2 Drain plugs for easy clean up

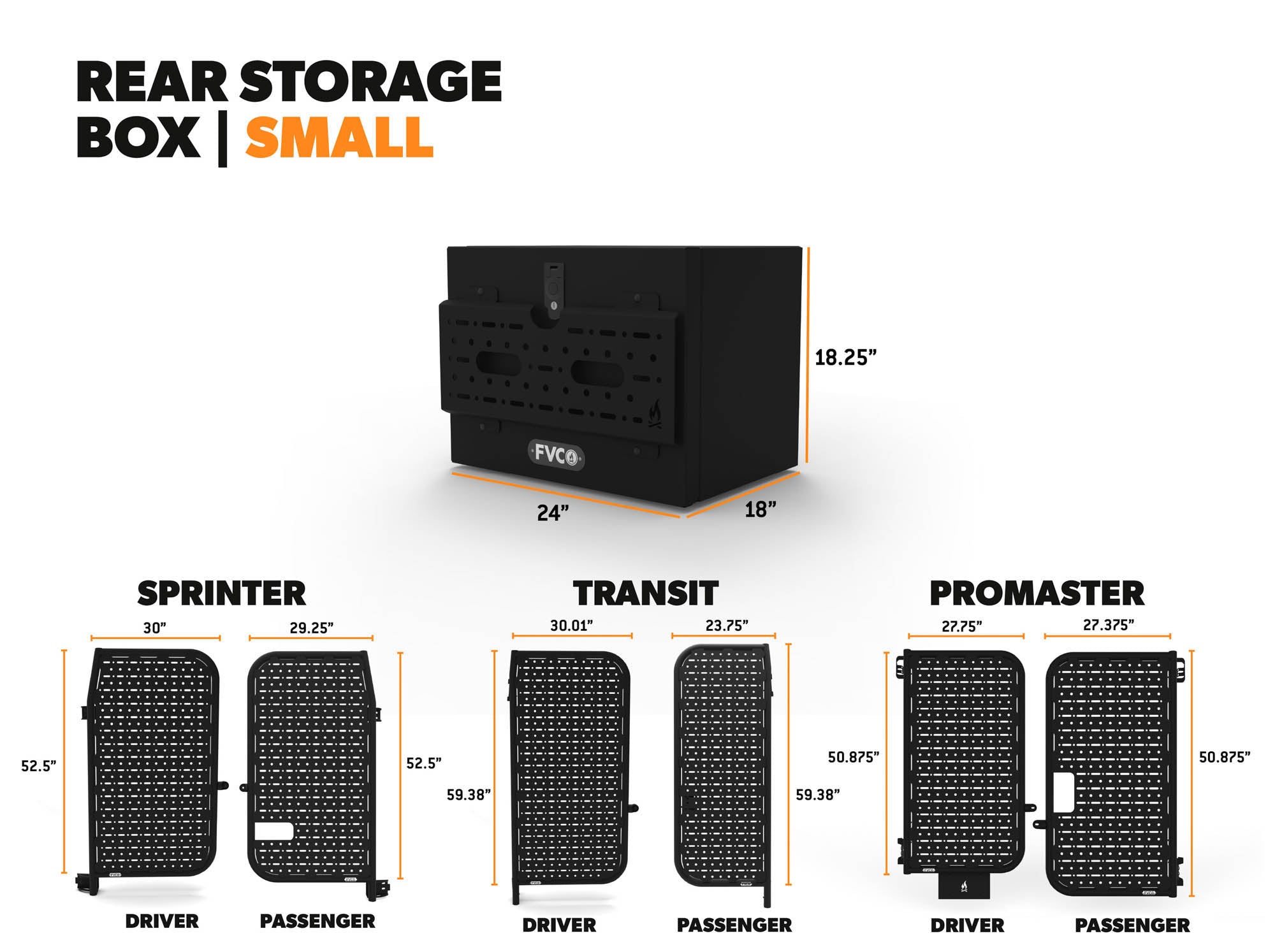

- Overall dimensions: 464mm tall x 610mm wide x 457mm deep
- Opening dimensions: 375mm tall x 523mm wide
- Interior dimensions: 457mm tall x 602mm wide x 373mm deep
- Weight: 18kg
COMPATIBILITY
- Fits our FVC Rear Door Platforms
| Fitment | Universal |
|---|---|
| Material | Aluminum |
| Weight | 29.1 kg |
| Install time | 0.5 hrs |
| Country of origin | China |
| Warranty | 1 YR |
| Dimensions (L × W × H) | 51.8 × 71.6 × 54.9 cm |
Typical install time: 0.5 hrs
Not confident doing it yourself? Get in touch and we'll point you to a fitter near you.
Ships from FVC USA. Orders delivered within Australia are tracked door to door. Shipping is calculated at checkout. See our shipping policy for details.
Rear boxes can obscure the factory tail/indicator lights at some angles — ADR requires supplementary brake/indicator lighting, which we include.
