FVC Sprinter Van Rear Ladder + Tire Carrier

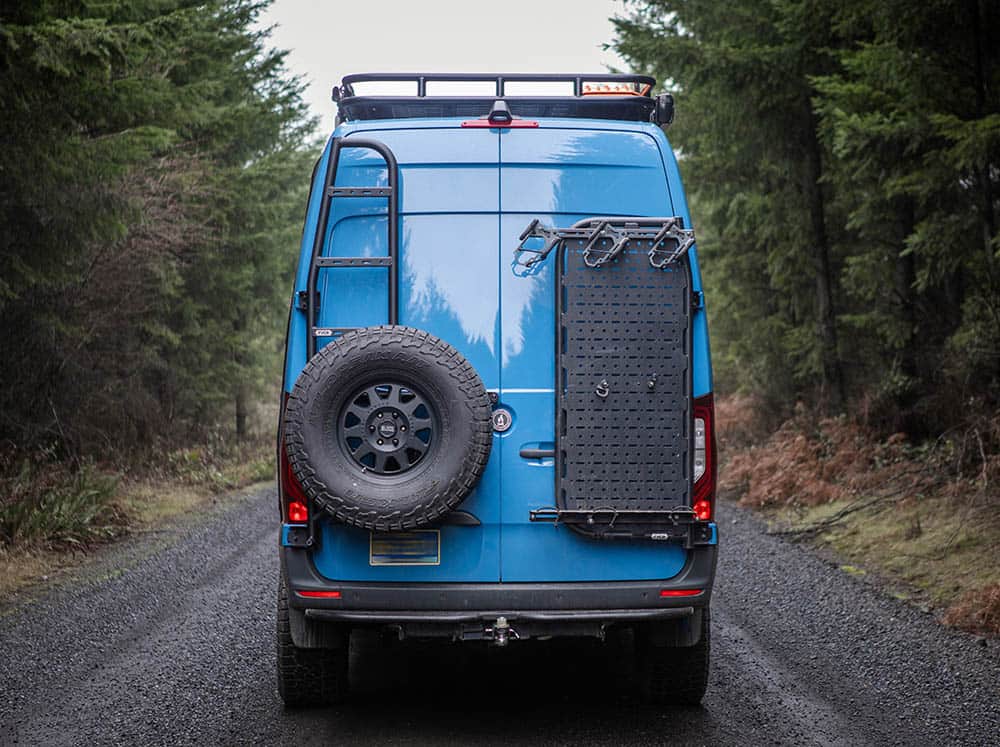

Flatline Van Co's Sprinter Rear Ladder + Tire Carrier combines two essential rear-door add-ons in one, saving you added weight and money while giving easy access to the roof and spare tyre. Storing the spare tyre on the rear door makes it easier to access and frees up valuable space underneath the van for things like water and auxiliary fuel tanks, while the fixed ladder makes it easy to get gear from the roof area, clean solar panels, and more — or works as a secondary ladder when loading big and bulky items on the roof.

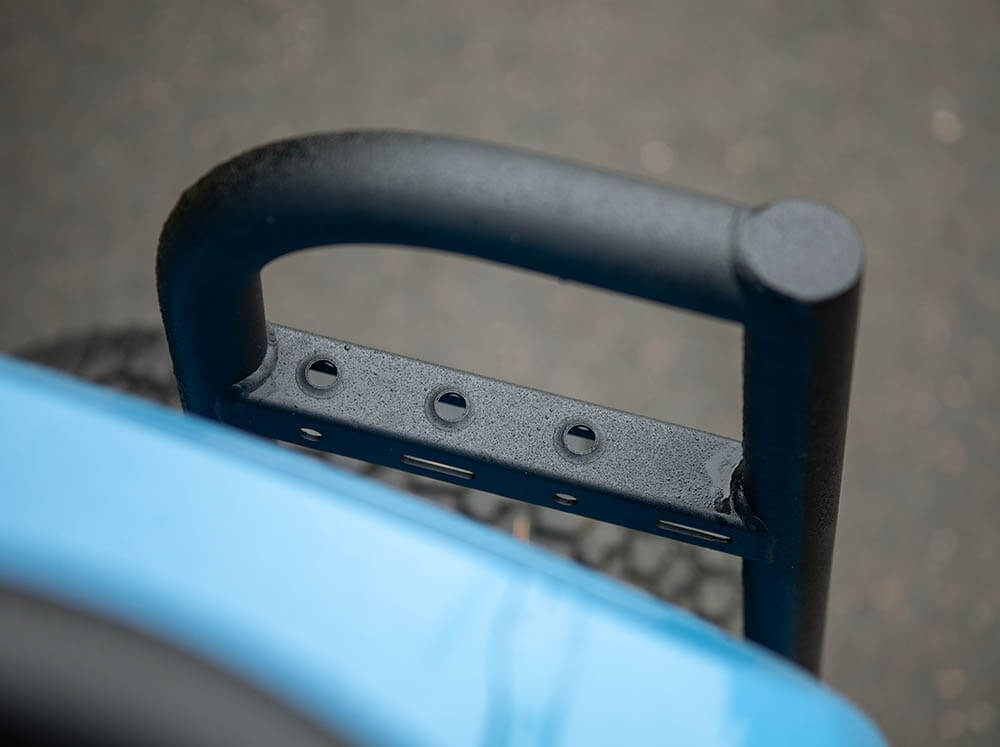

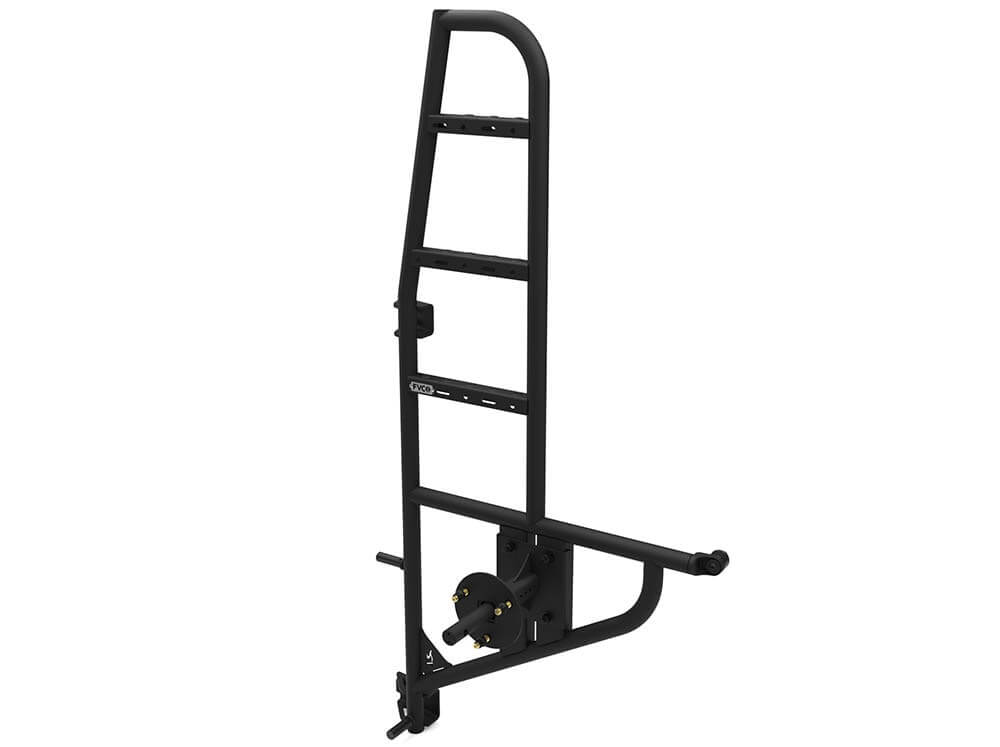

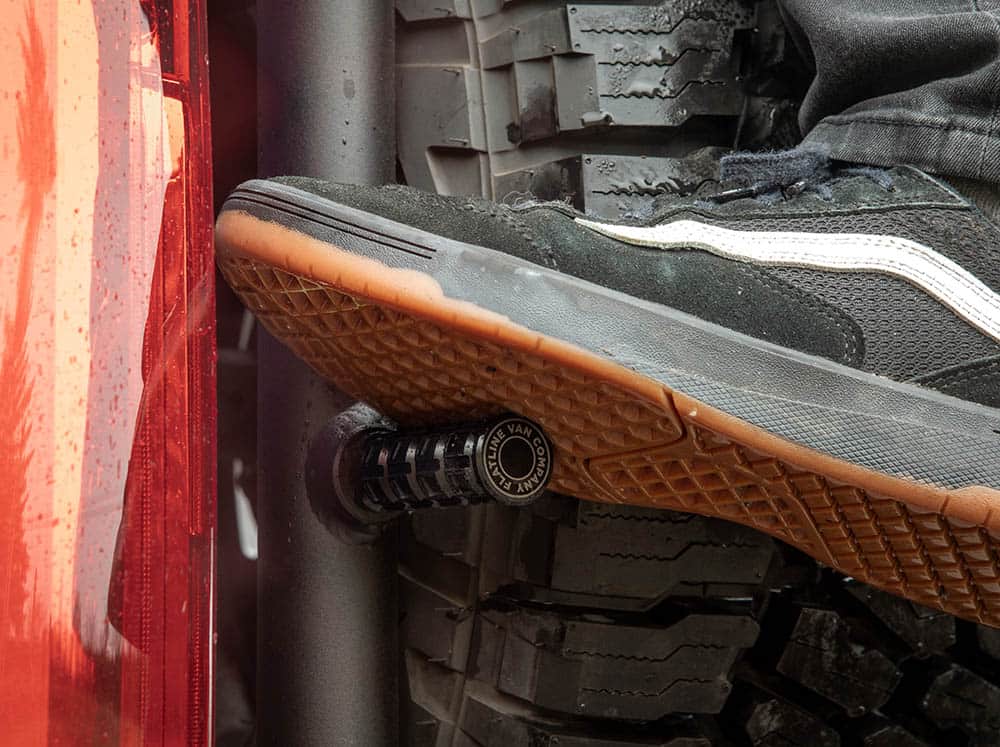

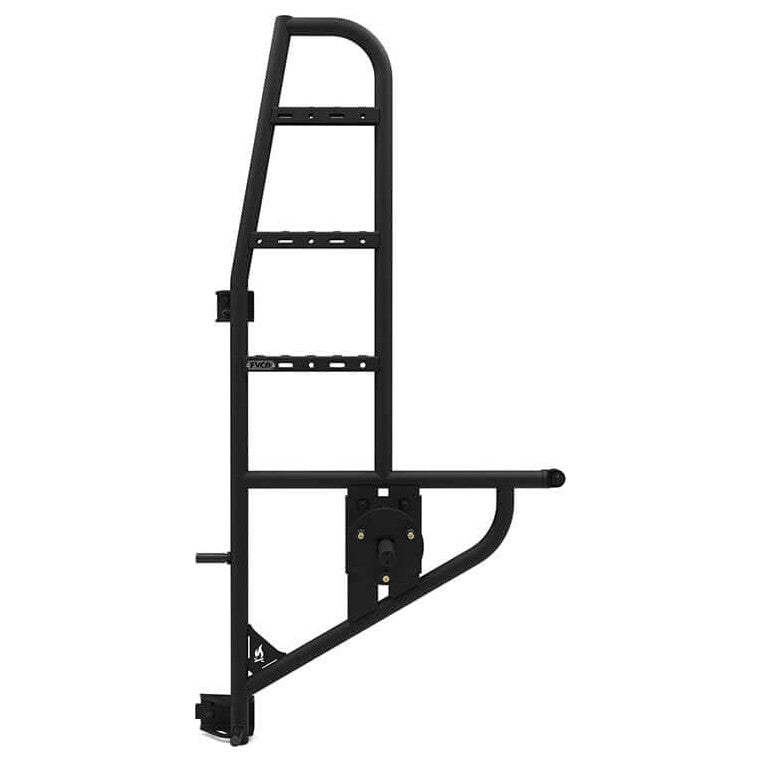

It's constructed on a sturdy 1.75” aluminium tube frame and features a stainless steel wheel mount, corrosion-resistant wheel studs, and locking lug nuts for security. Machined aluminium footpegs and formed dimples on the rungs provide the traction you want when climbing onto your van, and the third mounting point on the rear door utilises FVC's dual-shock silicone dampener to prevent damage to the body of your van.

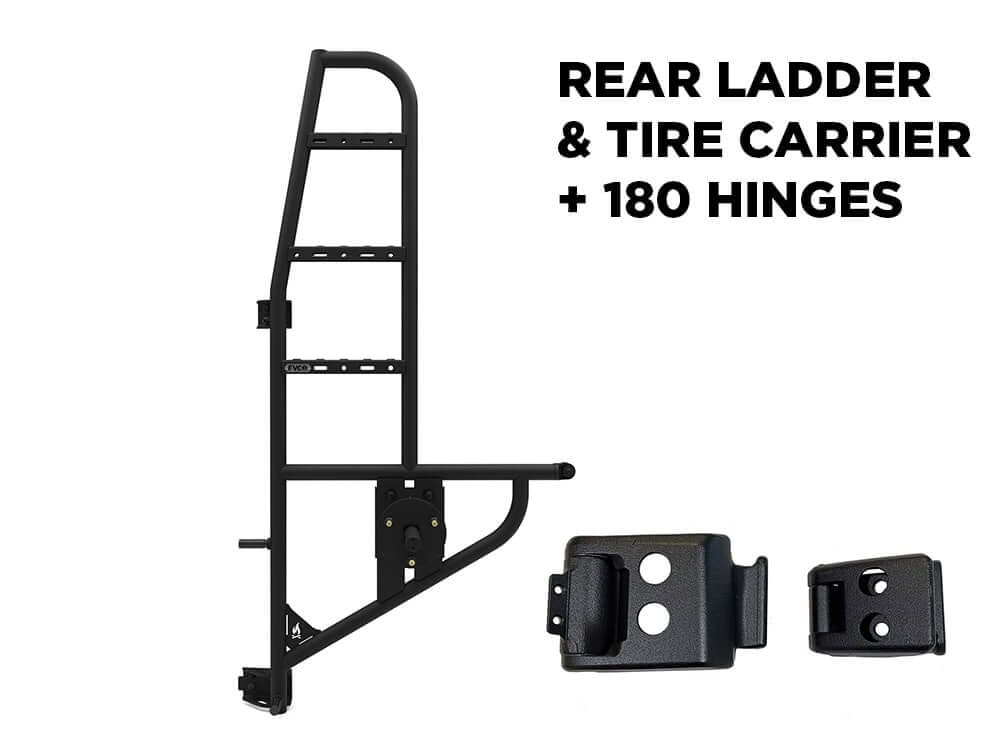

It mounts to the left-hand rear door and is compatible with 2019 and newer vans with 180-degree rear door hinges. If your van has 270-degree hinges, just select the option that includes 180-degree hinges and swap them out to install this product.

DETAILS

• Lightweight powder coated aluminium construction
• Silicone dampener
• Stainless steel wheel mount
• Locking lug nuts and lug nut key
• 14x1.5 Zinc yellow wheel studs, 65mm length (can accept up to a 15mm spacer), 10.9 grade hardness
• Adjustable lock rod for different wheels (Compatible with traditional hitch lock)

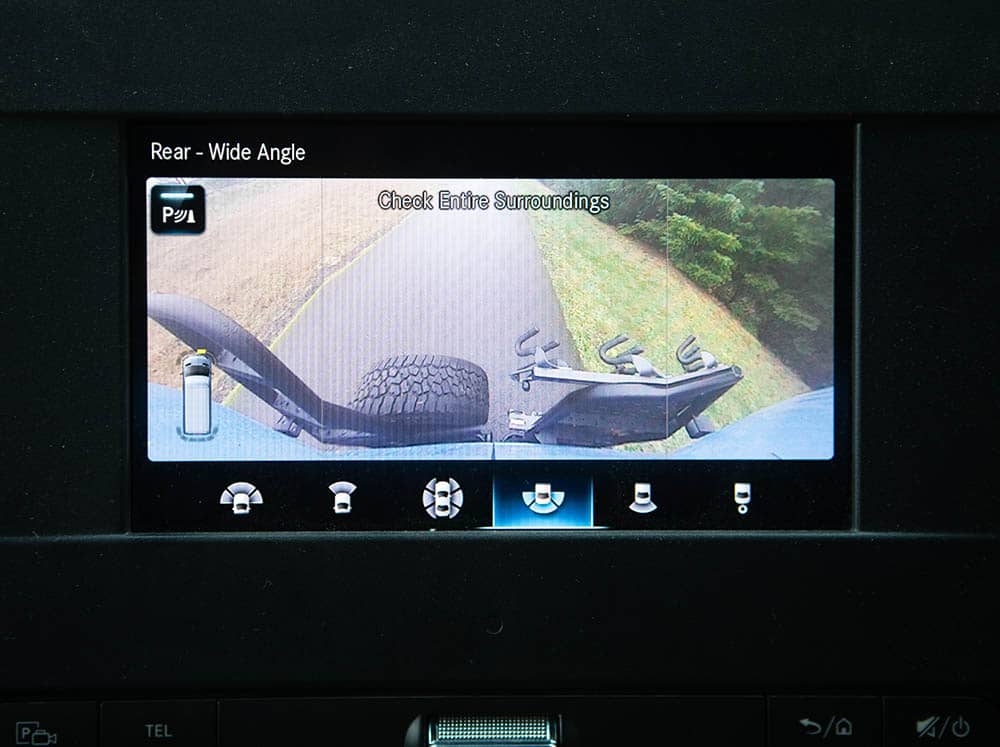

• Fits all tyre sizes up to 285 without any alterations - Please note that tyres over 275/70R17 may occasionally trip the parking assist sensors in the rear light assembly

COMPATIBILITY

• 2019+ Mercedes Benz Sprinter Vans with 180 hinges (VS30) — mounts to the left-hand rear door. NOT compatible with the 3500 Dually model without purchasing additional parts from Mercedes-Benz.
• 2020+ Winnebago Revel & Storyteller Overland with 180 hinges (Mercedes Sprinter models) — mounts to the left-hand rear door

Typical install time: 1 hrs

Not confident doing it yourself? Get in touch and we'll point you to a fitter near you.

Ships from FVC USA. Orders delivered within Australia are tracked door to door. Shipping is calculated at checkout. See our shipping policy for details.
